Oil Pump: Installation

Apply engine oil to the O-rings and attach it to the oil pan upper.
NOTE: Use new O-rings.

Fig 1: identifying Oil Pan Upper O-Rings
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to the mating surfaces of strainer.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Liquid gasket applying diameter:

2.0±1.0 mm (0.079±0.039 in)
NOTE:
- Install within 5 min. after applying liquid gasket.
- After installing the strainer, remove any liquid gasket that is squeezed out.
Fig 2: Identifying Liquid Gasket Application Area
Courtesy of SUBARU OF AMERICA, INC.
Install the strainer to the oil pump.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Install the stiffener and the oil pump.
Tightening torque:

T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

T2: 24 N.m (2.4 kgf-m, 17.7 ft-lb)

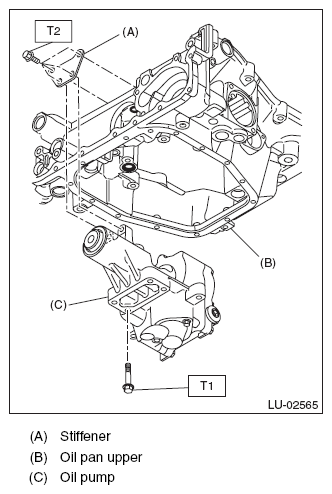

Fig 3: Identifying Stiffener, Oil Pan Upper And Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan lower. < Ref. to INSTALLATION , Oil Pan. >
Install the timing chain. < Ref. to INSTALLATION , Timing Chain Assembly. >
Install the chain cover. < Ref. to INSTALLATION , Chain Cover. >
Install the crank pulley. < Ref. to INSTALLATION , Crank Pulley. >
Install the V-belts. < Ref. to INSTALLATION , V-belt. >
Install the radiator. < Ref. to INSTALLATION , Radiator. >
Lift up the vehicle.
Install the under cover. < Ref. to INSTALLATION , Front Under Cover. >
Lower the vehicle.
Fill the Engine Coolant. < Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Refill the engine oil. < Ref. to REPLACEMENT , Engine Oil. >
Check the engine oil level. < Ref. to INSPECTION , Engine Oil. >
