Air Cleaner Element: Removal

Disconnect the ground cable from battery.

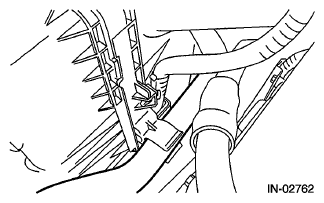

Disconnect the power steering oil pressure hose (suction hose) from the clip on the side of air cleaner case (rear).

Fig 1: Identifying Power Steering Oil Pressure Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors from the mass air flow and intake air temperature sensor.

Fig 2: Locating Mass Air Flow And Intake Air Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.

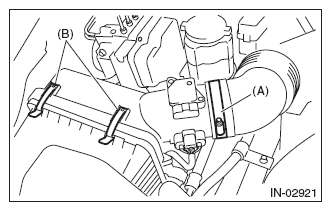

Loosen the clamp (A) which connects the air cleaner case (rear) to intake duct.
Remove the clips (B) securing the upper side of the air cleaner case.

Fig 3: Identifying Clamp Connecting Air Cleaner Case (Rear) To Intake Duct
Courtesy of SUBARU OF AMERICA, INC.
Pull the air cleaner case (rear) backward of the vehicle, and remove the air cleaner element.

Fig 4: Removing Air Cleaner Element
Courtesy of SUBARU OF AMERICA, INC.
