Components With Torque Specifications

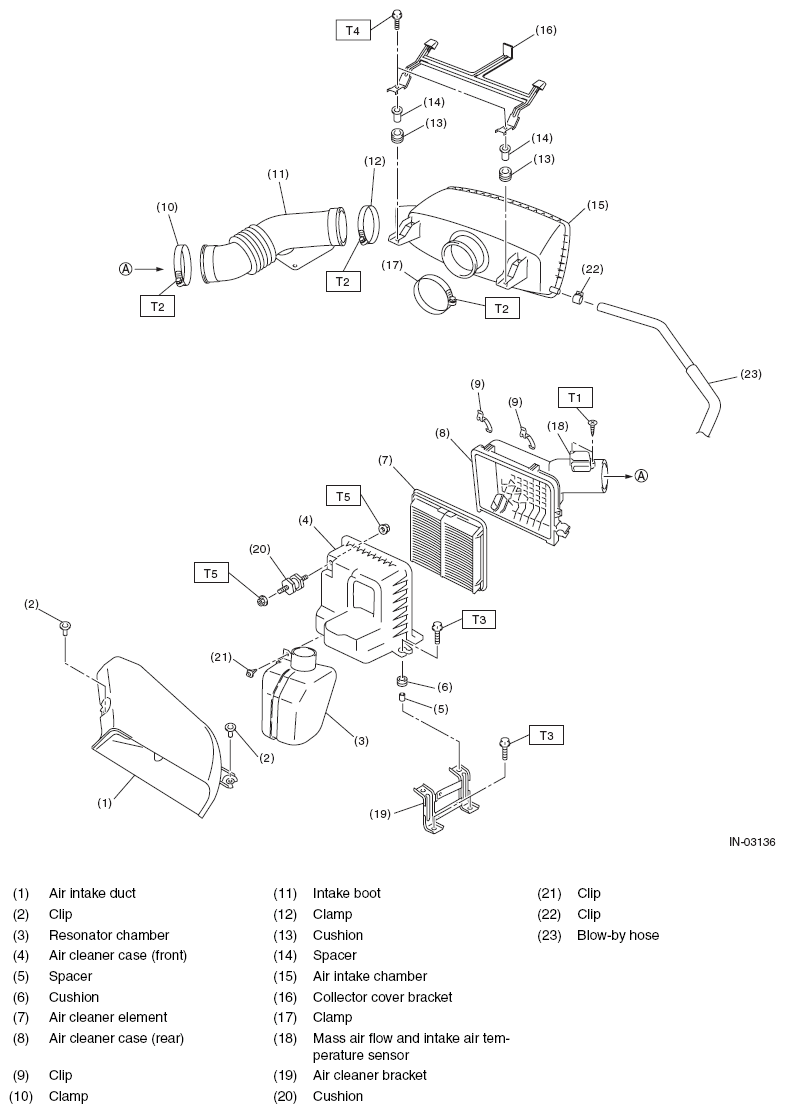

Fig 1: Intake Induction Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1 (0.1, 0.7)

T2: 3 (0.3, 2.2)

T3: 6 (0.6, 4.4)

T4: 6.5 (0.7, 4.8)

T5: 7.5 (0.8, 5.5)
