Intake Side

Remove the collector cover.
Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Remove the battery and battery carrier. < Ref. to REMOVAL , Battery. >
Open the fuel filler lid and remove the fuel filler cap.
Remove the securing clips from the two locations on the fuel pipe protector LH.

Fig 1: Locating Fuel Pipe Protector Clips
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the PCV hose.

Fig 2: Locating PCV Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe protector LH.

Fig 3: Locating Fuel Pipe Protector Bolts (LH)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors of the oil temperature sensor, engine coolant temperature sensor and intake oil flow control solenoid valve LH.

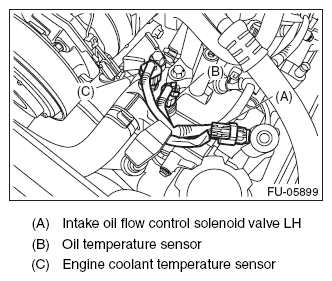

Fig 4: Identifying Intake Oil Flow Control Solenoid Valve LH, Oil Temperature And Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold fuel injector pipe LH to cylinder head.

Fig 5: Locating Fuel Injector Pipe LH To Cylinder Head Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Slightly raise the fuel injector pipe LH.
Disconnect the connector from intake camshaft position sensor LH.

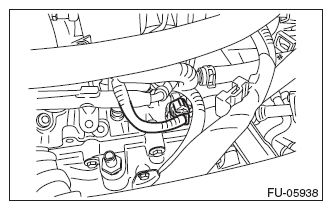

Fig 6: Identifying Intake Camshaft Position Sensor Connector (LH)
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake camshaft position sensor LH.

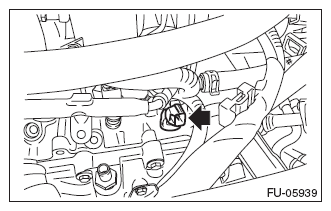

Fig 7: Locating Intake Camshaft Position Sensor (LH)
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake camshaft position sensor RH in the same procedure as LH side.
