Crankshaft Position Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

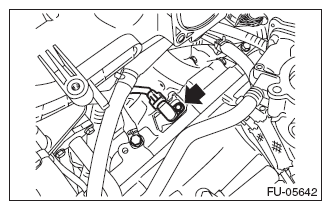

Fig 1: Locating Crankshaft Position Sensor Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Clamp (A), (B)

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Bolt (C)

6.5 N.m (0.7 kgf-m, 4.8 ft-lb)

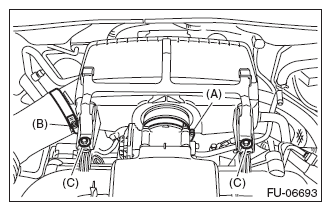

Fig 2: Identifying Air Intake Chamber Clamps And Bolt

Courtesy of SUBARU OF AMERICA, INC.
