EGR Valve: Inspection
- Check that the EGR valve has no deformation, cracks or other damages.

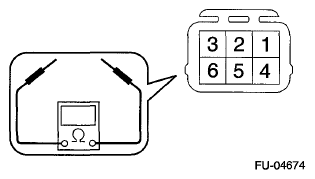

- Measure the resistance between EGR valve terminals.
Courtesy of SUBARU OF AMERICA, INC.
| Terminal No. |
Standard |
| 2 and 1 |
22±2 Ω |
| 2 and 3 |
22±2 Ω |
| 5 and 4 |
22±2 Ω |
| 5 and 6 |
22±2 Ω |
