Engine Coolant Temperature Sensor: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.
  3. Drain engine coolant. < Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  4. Disconnect the connectors from the engine coolant temperature sensor.

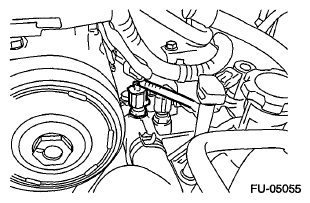

    Fig 1: Identifying Engine Coolant Temperature Sensor Connector
    G06651227Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the engine coolant temperature sensor.
