Front Oxygen (A/F) Sensor: Removal

  1. Disconnect the ground cable from battery.
  2. Lift up the vehicle.
  3. Disconnect the connector (A) of the front oxygen (A/F) sensor.
    Fig 1: Identifying Front Oxygen (A/F) Sensor Connector
    G08543968Courtesy of SUBARU OF AMERICA, INC.
  4. Apply spray-type lubricant to the threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more.
  5. Remove the front oxygen (A/F) sensor.
    CAUTION: When removing the front oxygen (A/F) sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.

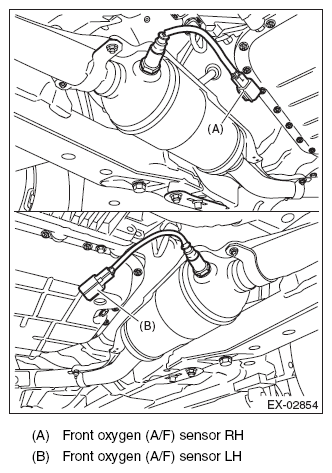

    Fig 2: Identifying Front Oxygen (A/F) Sensor (RH/LH)
    G08543969Courtesy of SUBARU OF AMERICA, INC.
