Fuel Filler Pipe: Installation

Open the fuel filler lid.
Set the fuel saucer (A) with gasket (C), and insert the fuel filler pipe into hole from the inner side of apron.
Align the holes in fuel filler pipe neck and set the cup (B), and tighten the bolts.
NOTE: If the edges of gasket are folded toward inside, straighten it with a flat tip screwdriver.

Tightening torque:

4.5 N.m (0.5 kgf-m, 3.3 ft-lb)

Fig 1: Identifying Fuel Saucer, Gasket And Cup
Courtesy of SUBARU OF AMERICA, INC.
Correctly insert the fuel filler hose to specified position, and then tighten the clamp.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 2: Identifying Fuel Filler Hose
Courtesy of SUBARU OF AMERICA, INC.

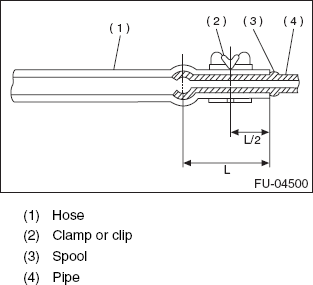

Fig 3: Identifying Hose, Clamp Or Clip, Spool And Pipe
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts which hold the fuel filler pipe on the body.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 4: Locating Fuel Filler Pipe Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear suspension assembly. < Ref. to INSTALLATION , Rear Sub Frame. >
Install the mud guard. < Ref. to INSTALLATION , Mud Guard. >
Lower the vehicle.
Install the rear wheel RH.
Tightening torque:

Chromed plated wheel

150 N.m (15.3 kgf-m, 110.6 ft-lb)

Other than above

120 N.m (12.2 kgf-m, 88.5 ft-lb)
Connect the battery ground terminal.
Inspect the wheel alignment and adjust if necessary.
