Fuel Pump Relay: Removal
- Disconnect the ground cable from battery.
- Remove the passenger's front door scuff plate. < Ref. to FRONT DOOR SCUFF PLATE , REMOVAL, Side Trim. >
- Remove the front pillar lower trim. < Ref. to FRONT PILLAR LOWER TRIM , REMOVAL, Side Trim. >

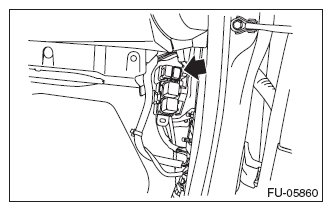

- Remove the fuel pump relay from the relay holder.
