Fuel Sub Level Sensor: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION:

Be careful not to spill fuel.
If the fuel gauge indicates that two thirds or more of the fuel is remaining, be sure to drain fuel before starting work to avoid the fuel to spill.

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Drain fuel. < Ref. to DRAINING FUEL (WITH SUBARU SELECT MONITOR) , PROCEDURE, Fuel. >
Disconnect the ground cable from battery.
Remove the second row seats. < Ref. to REMOVAL , Second Seat. >
Remove the service hole cover.

Fig 1: Locating Service Hole Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel sub level sensor.

Fig 2: Identifying Fuel Sub Level Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the quick connectors of fuel delivery tube and fuel sub delivery tube. < Ref. to REMOVAL , Fuel Delivery and Evaporation Lines. >

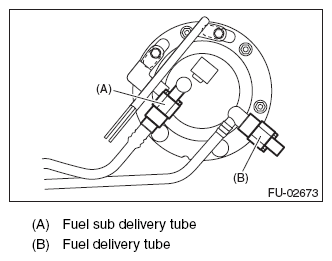

Fig 3: Identifying Fuel Delivery Tube And Fuel Sub Delivery Tube Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts securing the fuel sub level sensor upper plate to the fuel tank and remove the fuel sub level sensor upper plate.

Fig 4: Locating Fuel Sub Level Sensor Upper Plate Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel sub level sensor.
