Engine harness assembly diagram 2

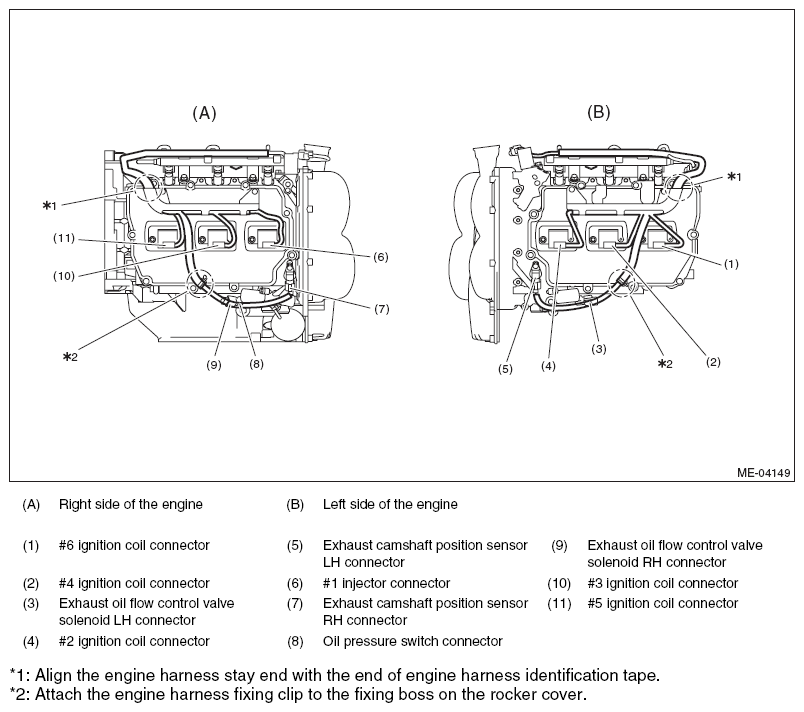

Fig 1: Engine Harness Assembly Diagram 2
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
