RH Side

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.
  3. Remove the air cleaner case. < Ref. to REMOVAL , Air Cleaner Case. >
  4. Remove the engine harness stay (A).
  5. Disconnect the connector (B) from ignition coil.

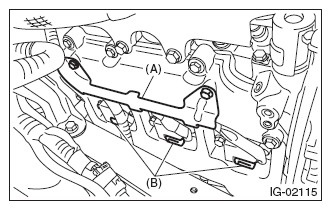

    Fig 1: Identifying Engine Harness Stay And Ignition Coil Connector
    G08544515Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the ignition coil.
    NOTE: Turn the #5 ignition coil to remove it.
  7. Remove the spark plug with a spark plug socket.

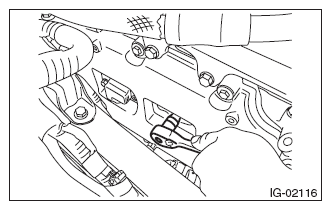

    Fig 2: Removing Spark Plug Using Spark Plug Socket
    G08544516Courtesy of SUBARU OF AMERICA, INC.

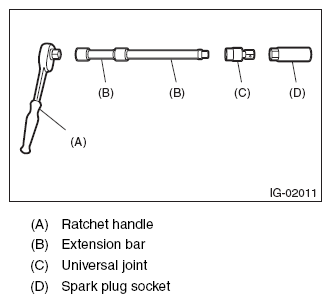

    Fig 3: Identifying Ratchet Handle, Extension Bar, Universal Joint And Spark Plug Socket
    G08544517Courtesy of SUBARU OF AMERICA, INC.
