DTC P0606 Control Module Processor: Wiring Diagram

Engine electrical system. Refer to appropriate ENGINE PERFORMANCE wiring diagram.

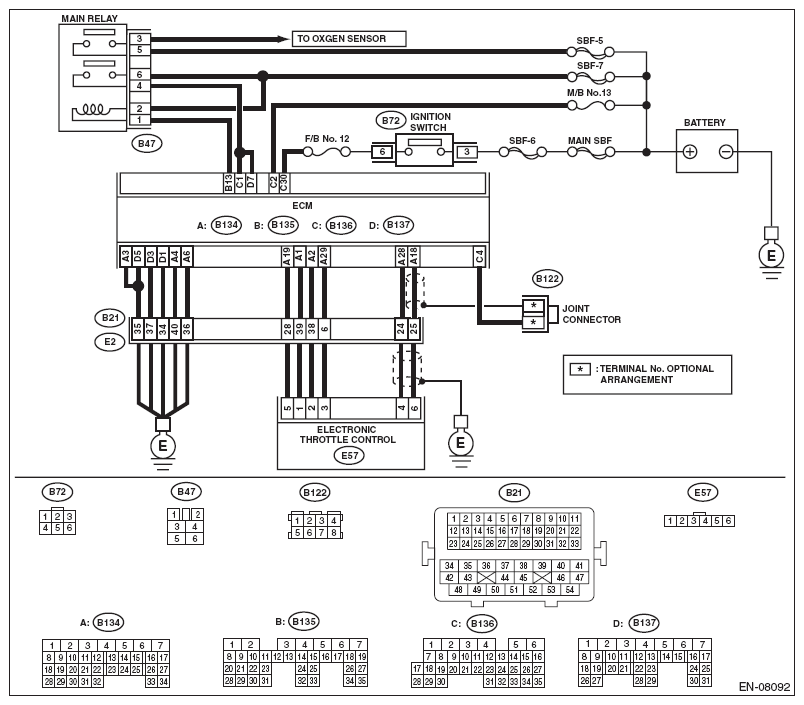

Fig 1: Control Module Processor Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
