Control Module

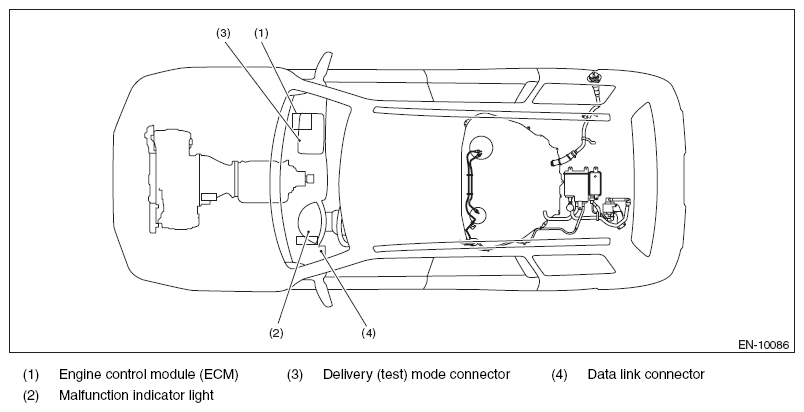

Fig 1: Identifying Control Module Components Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

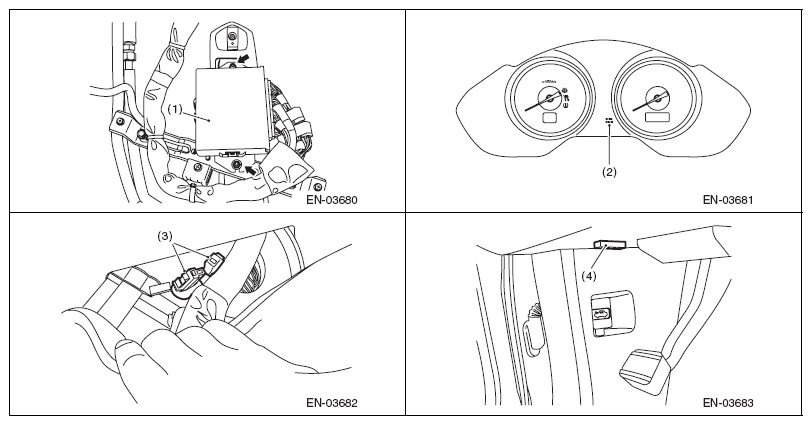

Fig 2: Identifying Control Module Components Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
