Engine Coolant: Inspection

CAUTION:

Do not use water instead of coolant.
Refer to "Recommended Materials" service information for the recommended engine coolant. < Refer to COOLANT , RECOMMENDED MATERIALS, Recommended Materials. >

Park the vehicle on a level surface.
Make sure the engine coolant level in the reservoir tank is between "FULL" and "LOW" when the engine is cold.
NOTE:
If the engine coolant level drops, make sure that there are no engine coolant leakage, and add engine coolant to the "FULL" line.

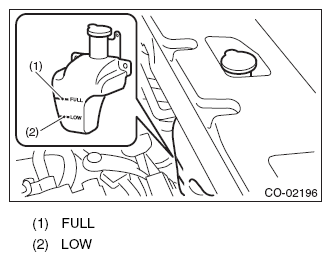

Fig 1: Identifying Engine Coolant Reservoir Tank Full And Low Level
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator cap and make sure that the radiator is filled with engine coolant up to the filler neck position.
