Lifting And Jacking

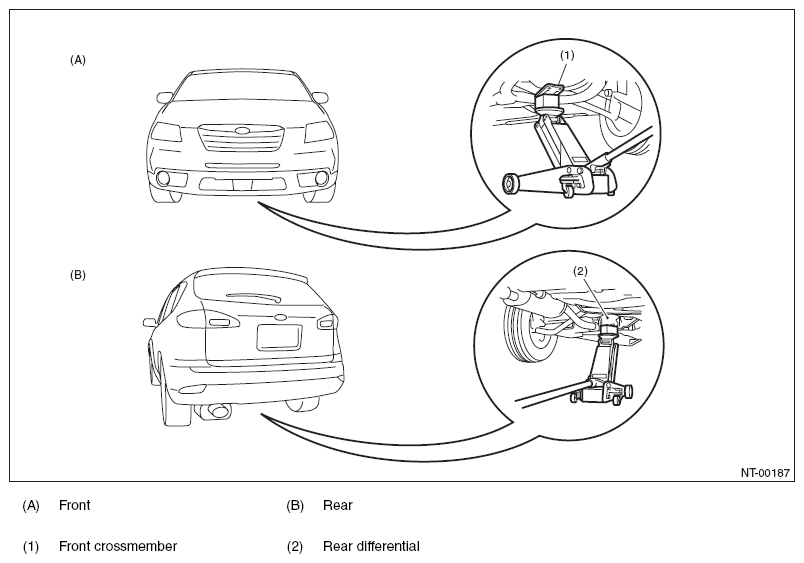

When using a lift or shop jack to raise a vehicle or using rigid rack to support a vehicle, always follow instructions concerning jack-up points and weight limits to prevent the vehicle from falling, which could result in injury. Be especially careful that the vehicle is balanced before raising it. Be sure to set the wheel stoppers when jacking-up only the front or rear side of the vehicle.

NOTE:

When using a lift, follow its operation manual.
Do not work or leave unattended while the vehicle is supported with jack, support it with rigid racks.
Be sure to use the rigid racks with rubber attached to cradle to support the vehicle.
When using a plate lift, use a rubber attachment. Place the attachment to the specified position of the vehicle, by adjusting front/rear and left/right sides accordingly.

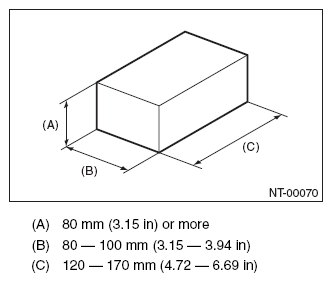

Fig 1: Identifying Rubber Attachment Dimension
Courtesy of SUBARU OF AMERICA, INC.
Align the cushion rubber end of plate lift with the end of rubber attachment. (portion b) Also, align the center of the supporting location with the center of the attachment. (portion a)
Do not use the plate lift whose attachment does not reach the supporting locations.

Fig 2: Aligning Center Of Attachment With Center Of Vehicle Rib
Courtesy of SUBARU OF AMERICA, INC.

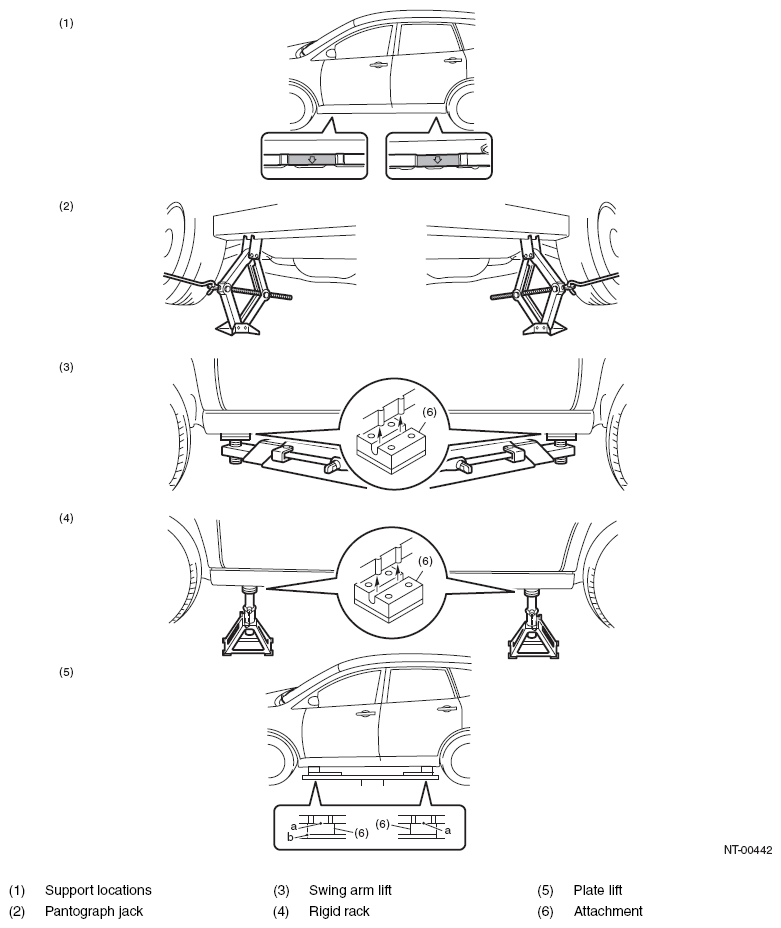

Fig 3: Vehicle Support Locations
Courtesy of SUBARU OF AMERICA, INC.
