Differential Case Assembly

Remove the taper roller bearing using the ST and the press.
ST 498077000 REMOVER

Fig 1: Removing Taper Roller Bearing Using Remover
Courtesy of SUBARU OF AMERICA, INC.

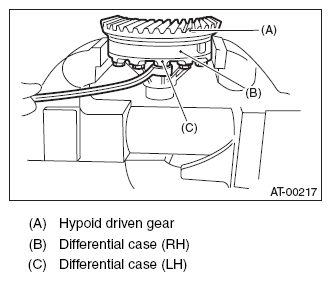

Secure the case in a vise, remove the hypoid driven gear tightening bolts, and then separate the hypoid driven gear into case (RH) and case (LH).

Fig 2: Separating Hypoid Driven Gear Into Case (RH) And Case (LH)
Courtesy of SUBARU OF AMERICA, INC.

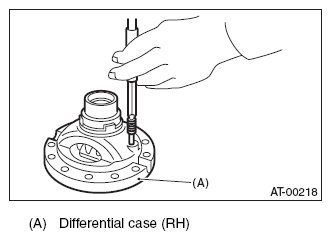

Pull out the straight pin and shaft, and then remove the differential bevel gear, washer and differential bevel pinion.

Fig 3: Removing Differential Bevel Gear, Washer And Differential Bevel Pinion
Courtesy of SUBARU OF AMERICA, INC.
