Front Vehicle Speed Sensor: Installation

Install the front vehicle speed sensor.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

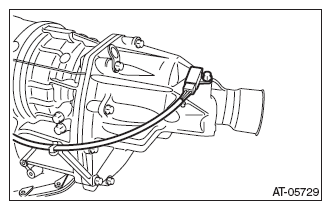

Fig 1: Identifying Front Vehicle Speed Sensor And Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the front vehicle speed sensor connector.

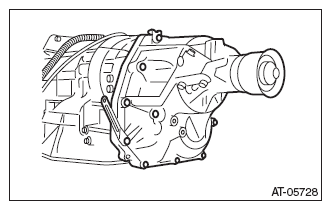

Fig 2: Identifying Front Vehicle Speed Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Apply proper amount of liquid gasket to the entire oil pan mating surface.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent

Fig 3: Identifying Liquid Gasket Applying Area On Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan by equally tightening the bolts.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Install the center differential carrier. < Ref. to INSTALLATION , Center Differential Carrier. >
Install the extension case.
NOTE: Use a new gasket.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 4: Identifying Extension Case Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the rear vehicle speed sensor connector.

Fig 5: Identifying Rear Vehicle Speed Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
Pour ATF from the oil charge pipe. < Ref. to AUTOMATIC TRANSMISSION FLUID . >
Check the level and leaks of ATF. < Ref. to INSPECTION , Automatic Transmission Fluid. >
