Reverse Brake

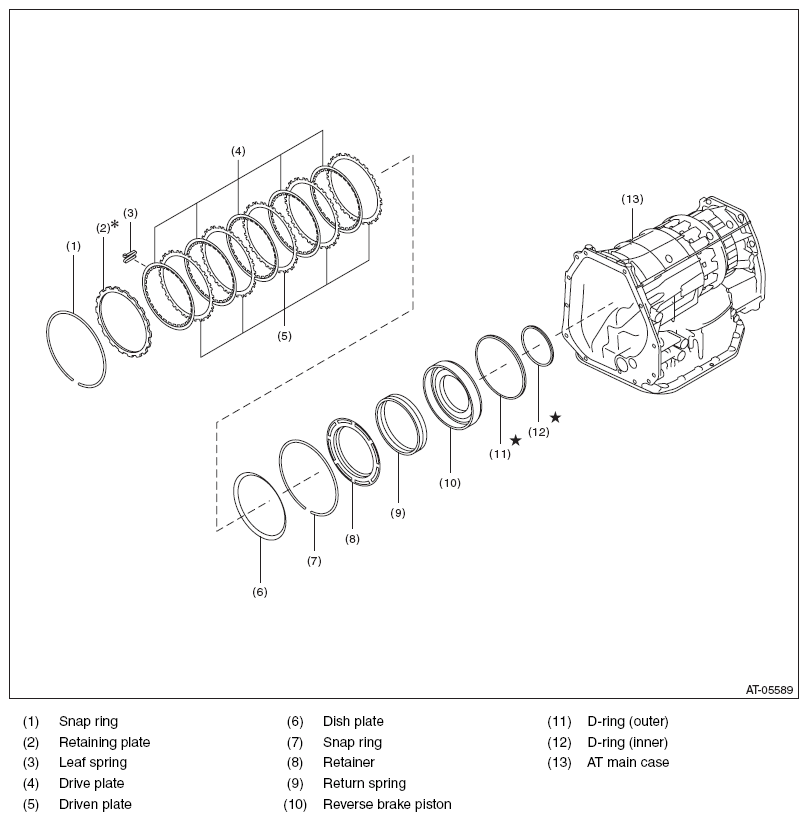

Fig 1: Identifying Reverse Brake And Related Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
