Torque Converter Clutch & Transmission Assembly

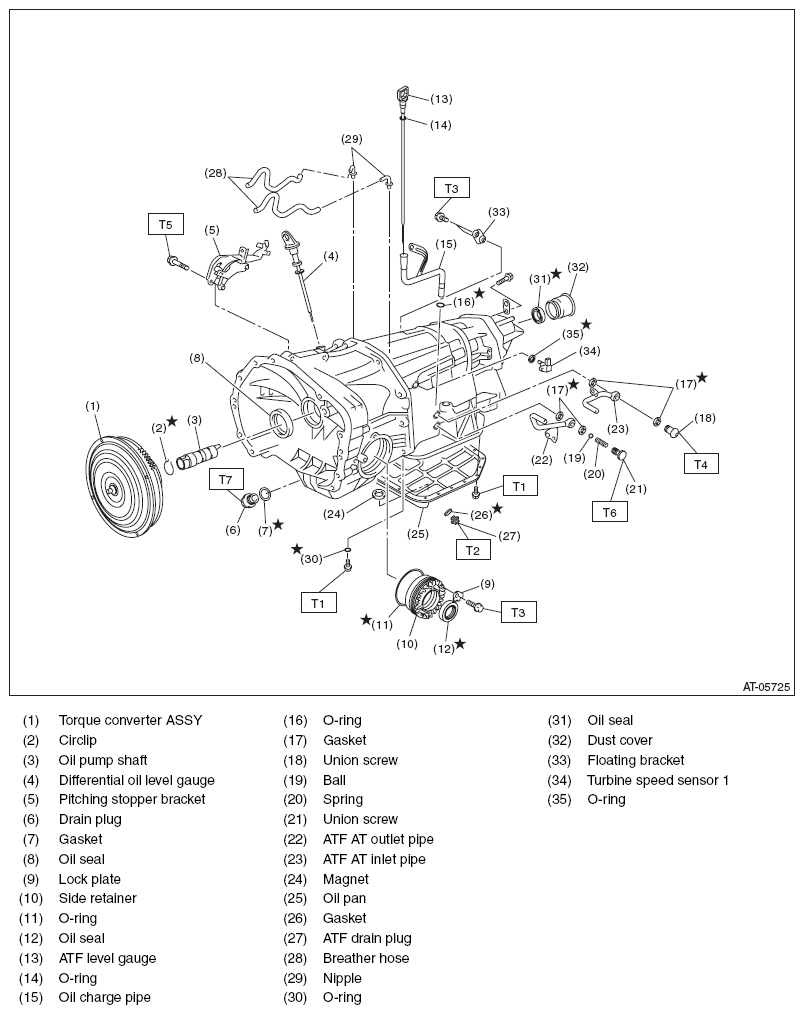

Fig 1: Torque Converter Clutch And Transmission Assembly Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 20 (2.0, 14.8)

T3: 25 (2.5, 18.4)

T4: 40 (4.1, 29.5)

T5: 41 (4.2, 30.2)

T6: 45 (4.6, 33.2)

T7: 70 (7.1, 51.6)
