Transmission Control Device: Installation

Install the detent spring to the transmission case.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 1: Identifying Detent Spring
Courtesy of SUBARU OF AMERICA, INC.
Insert the range select lever, and tighten the bolts.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Fig 2: Identifying Range Select Lever And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Insert the manual plate and parking rod.

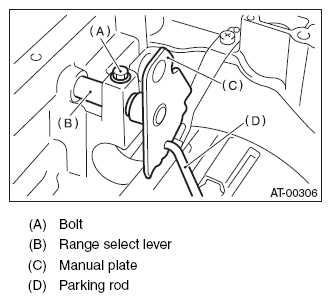

Fig 3: Identifying Range Select Lever, Manual Plate, Parking Rod And Bolt
Courtesy of SUBARU OF AMERICA, INC.
Insert the straight pin to the manual plate.

Fig 4: Inserting Straight Pin To Manual Plate
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan and the control valve body assembly. < Ref. to INSTALLATION , Control Valve Body. >
Install the pitching stopper bracket.
Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)
Insert the transmission connector to the stay.
Install the air breather hose. < Ref. to INSTALLATION , Air Breather Hose. >
Install the torque converter assembly. < Ref. to INSTALLATION , Torque Converter Assembly. >
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
