Transmission Control Module (TCM): Installation

Install the TCM to the bracket.
CAUTION: To avoid the damage to bracket and TCM, do not remove after installing TCM to bracket. If installed by mistake, the part must be replaced with a new part.
Install the TCM.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

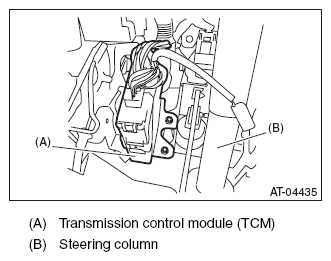

Fig 1: Identifying Transmission Control Module And Steering Column
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to TCM.
Install in the reverse order of removal.
Perform Clear Memory 2 operation. < Ref. to CLEAR MEMORY MODE , OPERATION, Subaru Select Monitor. >
Perform the diagnosis again. < Ref. to PROCEDURE , Learning Control. >
Perform the inspection at the end of repair work, and make sure there is no faulty as below:
- Excessive shift shock
- Oil leakage from the transmission body, etc.
- Occurrence of noise caused by interference etc.
