MT Gear Shift Cable: Installation

CAUTION:

Do not bend MT gear shift cable at a sharp angle.
When replacing the new MT gear shift cable, secure it to shift bracket with the clamps, be careful not to mistake the installing direction.

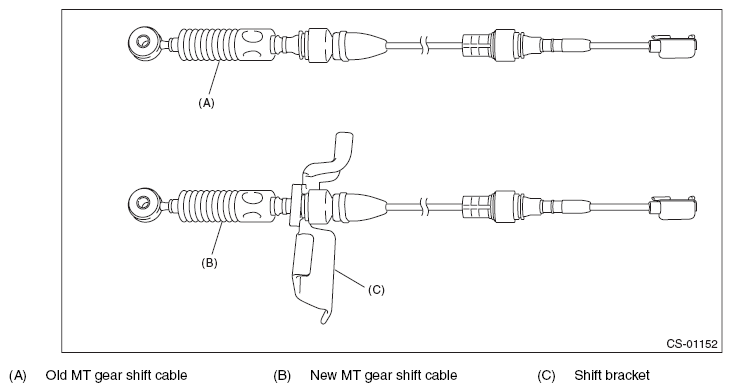

Fig 1: Identifying Shift Bracket And MT Gear Shift Cables

Courtesy of SUBARU OF AMERICA, INC.

Install the MT gear shift cable and shift bracket as a single unit onto transmission.

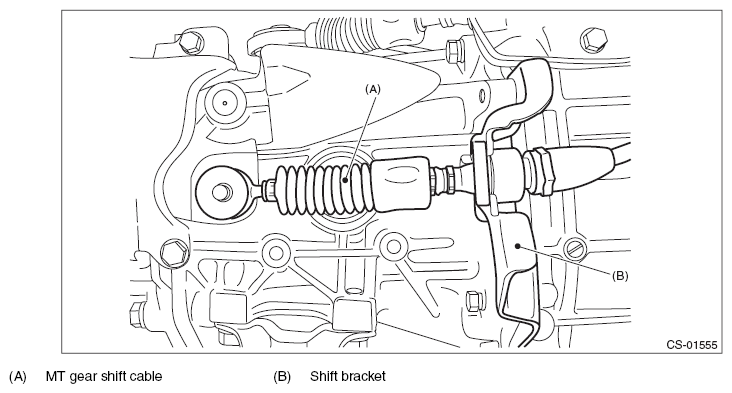

Fig 2: Identifying MT Gear Shift Cable And Shift Bracket
Courtesy of SUBARU OF AMERICA, INC.
Tighten the shift bracket with specified torque.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

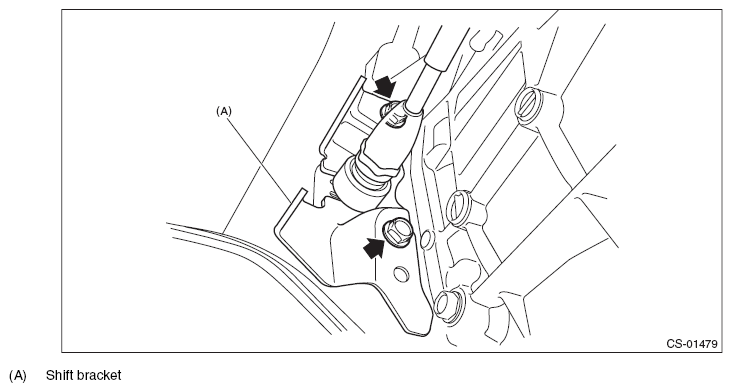

Fig 3: Locating Shift Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the snap pin to the shift lever COMPL.

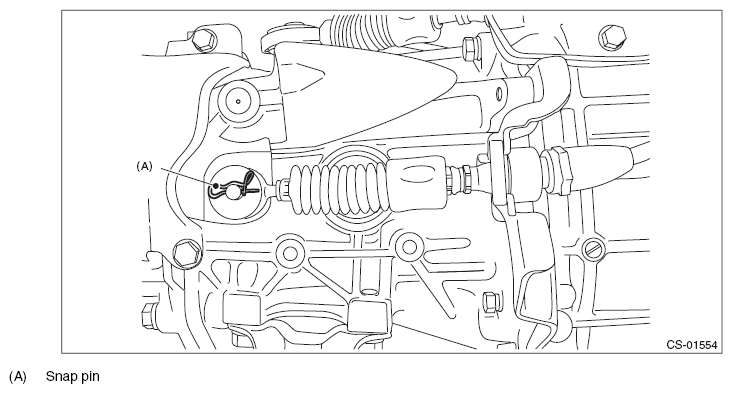

Fig 4: Identifying Shift Lever COMPL Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the dust cover to the transmission body.
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)

Fig 5: Locating Transmission Body Dust Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Insert the MT gear shift cable into cable cover assembly, and secure it with the clamp.

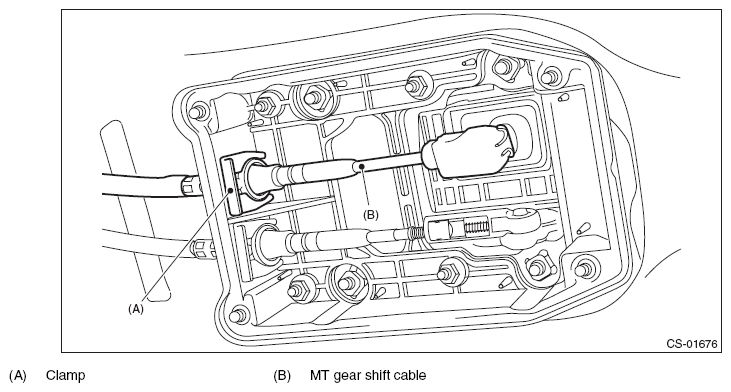

Fig 6: Identifying MT Gear Shift Cable And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Connect the MT gear shift cable.
Attach the cable cover plate.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 7: Locating Cable Cover Plate Bolts
Courtesy of SUBARU OF AMERICA, INC.
Insert the MT gear shift cable into cable clamp, and install to the transmission.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

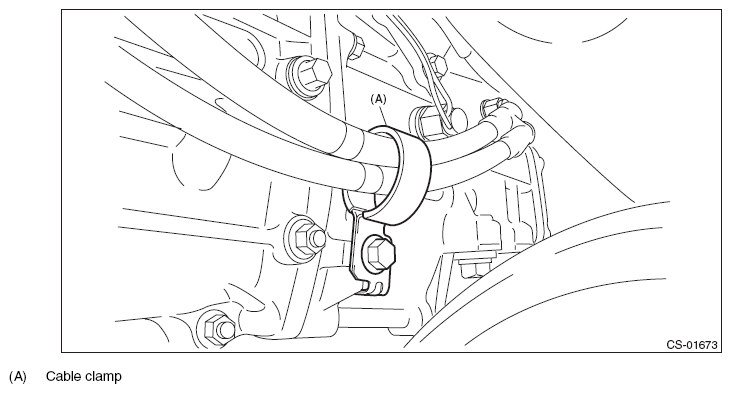

Fig 8: Identifying MT Gear Shift Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 9: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. < Ref. to INSTALLATION , Center Exhaust Pipe. >
Install the transmission under cover.

Fig 10: Identifying Transmission Under Cover
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect the battery ground terminal.
Make sure the gears can be shifted accurately into each gear.
