MT Gear Shift Cable: Removal

Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the transmission under cover.

Fig 1: Identifying Transmission Under Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust pipe. < Ref. to REMOVAL , Center Exhaust Pipe. >
Remove the center exhaust cover.

Fig 2: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable clamp and take out the MT gear shift cable from the clamp.

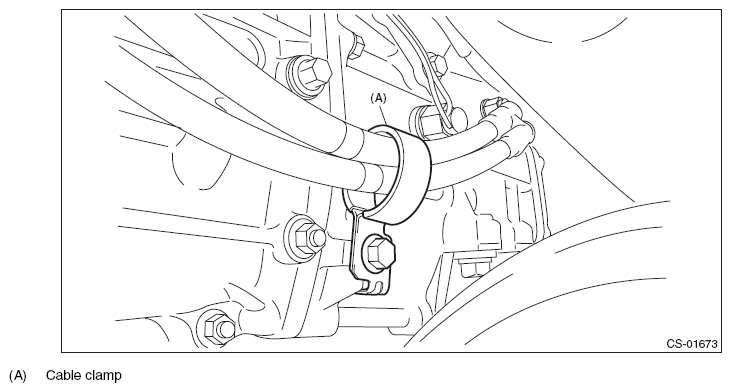

Fig 3: Identifying MT Gear Shift Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the dust cover from transmission body.

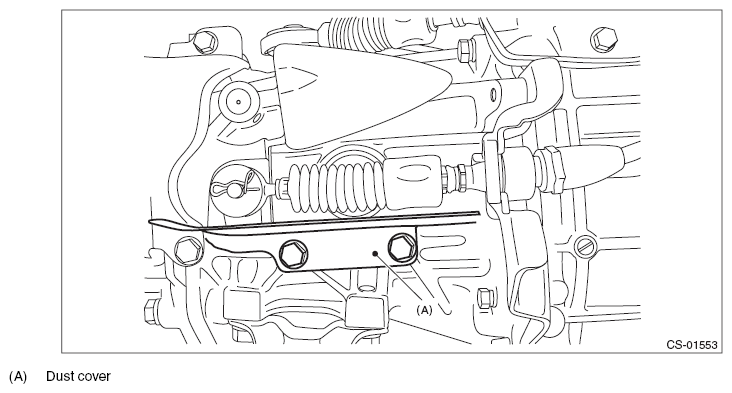

Fig 4: Identifying Dust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap pin from the shift lever COMPL.

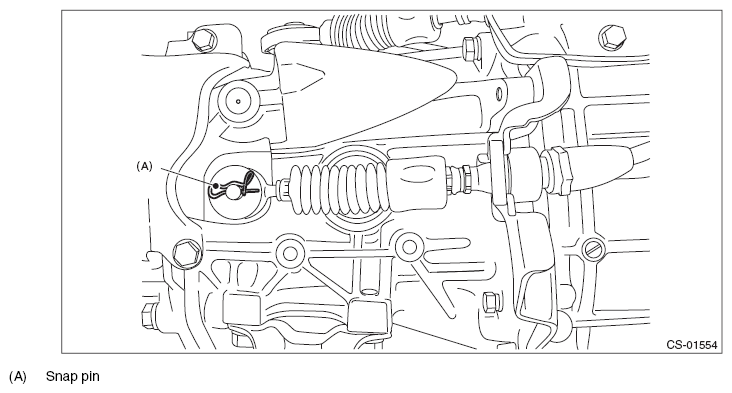

Fig 5: Identifying Shift Lever COMPL Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts holding the shift bracket.

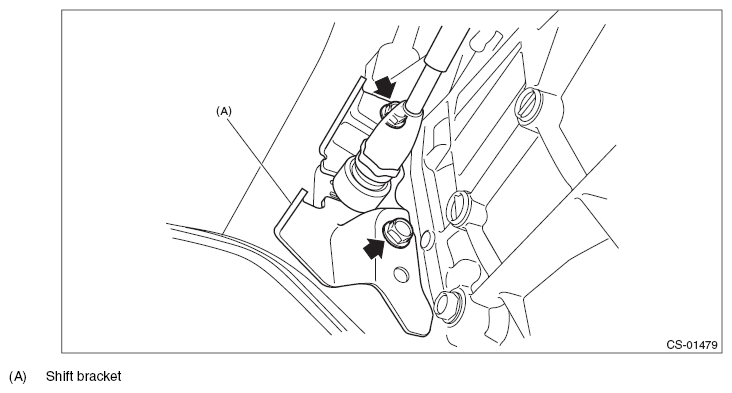

Fig 6: Locating Shift Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift bracket and MT gear shift cable as a single unit from the transmission body.

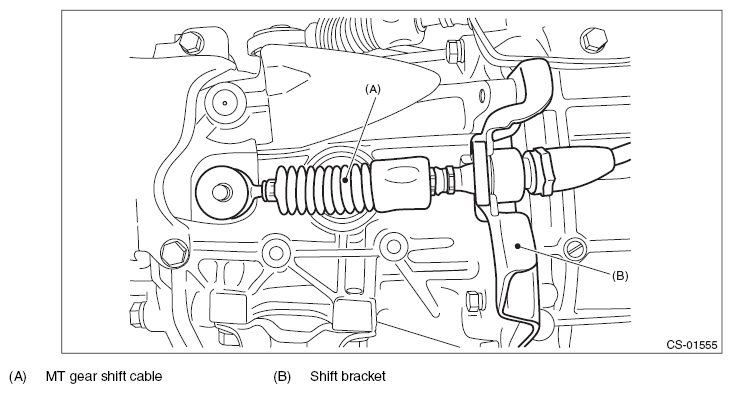

Fig 7: Identifying Shift Bracket And MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable cover plate.

Fig 8: Locating Cable Cover Plate Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the MT gear shift cable.
CAUTION: Be careful not to deform the cable inner.

NOTE: Pull out down the MT gear shift cable to spread the spring.

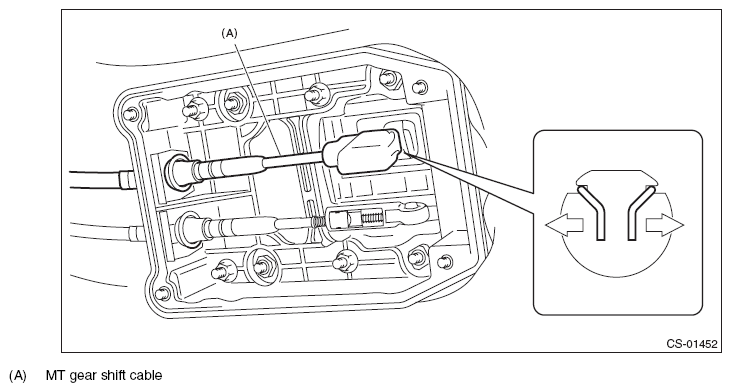

Fig 9: Disconnecting MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp which holds the MT gear shift cable.

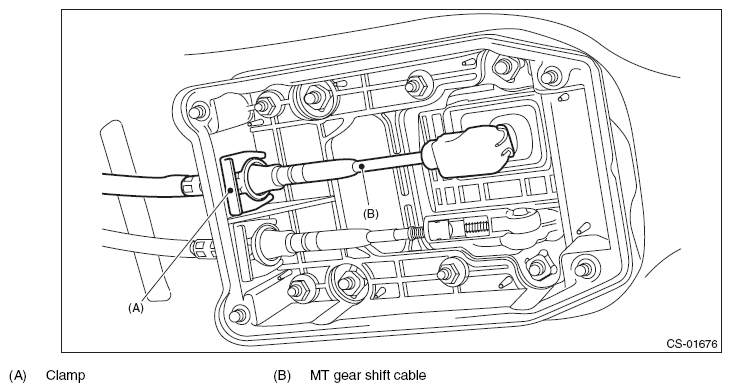

Fig 10: Identifying MT Gear Shift Cable And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear shift cable from cable cover assembly.

Fig 11: Identifying MT Gear Shift Cable And Cable Cover Assembly
Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
- Do not bend MT gear shift cable at a sharp angle.
- Do not twist the cable inner excessively.
