Fuel Filler Pipe: Installation

Open the fuel filler lid.
Insert the fuel filler pipe from inside of the rear fender.
Install the fuel filler pipe to the vehicle body and connect the evaporation hose (A) to the fuel filler pipe.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 1: Locating Fuel Filler Pipe Screws
Courtesy of SUBARU OF AMERICA, INC.
Align the cutout on the fuel filler pipe protector and the protrusion of the neck holder and insert them all the way, and then turn the fuel filler pipe protector in the direction of the arrow until it is locked.

Fig 2: Aligning Cutout On Fuel Filler Pipe Protector And Neck Holder Protrusion
Courtesy of SUBARU OF AMERICA, INC.
Correctly insert the fuel filler hose to the spool, and then install the clamp as shown.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 3: Locating Fuel Filler Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.

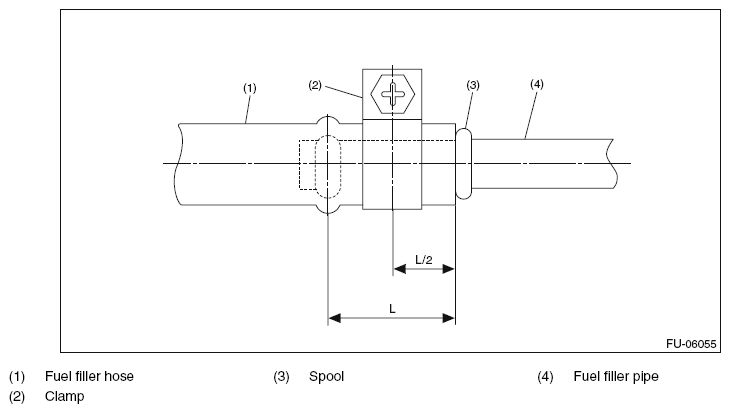

Fig 4: Identifying Fuel Filler Hose Installation Position
Courtesy of SUBARU OF AMERICA, INC.
Install the rear mud guard RH. <Ref. to INSTALLATION , Mud Guard.>
Install the rear sub frame assembly. <Ref. to INSTALLATION , Rear Sub Frame.>
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
