Intake Manifold Assembly: Disassembly

  1. Remove the throttle body. <Ref. to REMOVAL , Throttle Body.>
  2. Remove the EGR pipe. <Ref. to REMOVAL , EGR Pipe.>
  3. Remove the EGR control valve. <Ref. to REMOVAL , EGR Control Valve.>
  4. Remove the purge control solenoid valve. <Ref. to REMOVAL , Purge Control Solenoid Valve.>
  5. Remove the manifold absolute pressure sensor. <Ref. to REMOVAL , Manifold Absolute Pressure Sensor.>
  6. Remove the fuel delivery pipe assembly from the intake manifold assembly.
    NOTE: Disconnect the quick connector as shown in the figure.

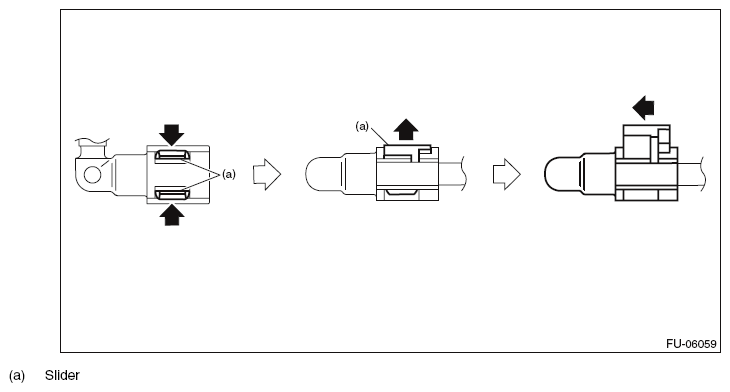

    Fig 1: Disconnecting Quick Connector
    G10262142Courtesy of SUBARU OF AMERICA, INC.
    Fig 2: Locating Manifold Absolute Pressure Sensor
    G10262143Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the fuel pipe assembly from the intake manifold assembly.

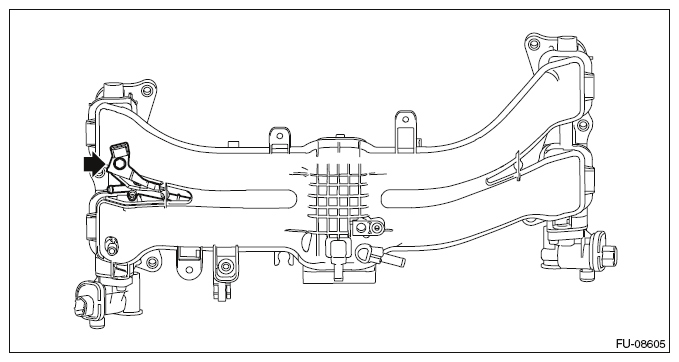

    Fig 3: Locating Fuel Pipe Assembly
    G10262144Courtesy of SUBARU OF AMERICA, INC.
