Model With Push Button Ignition Switch

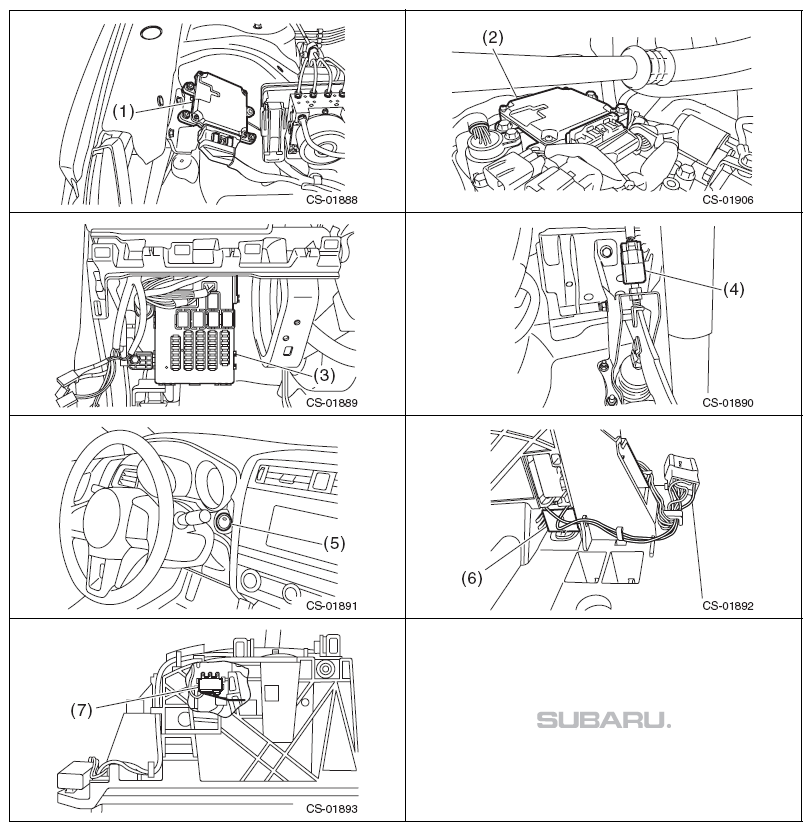

Fig 1: AT Shift Lock Control System Component Location - Model With Push Button Ignition Switch (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

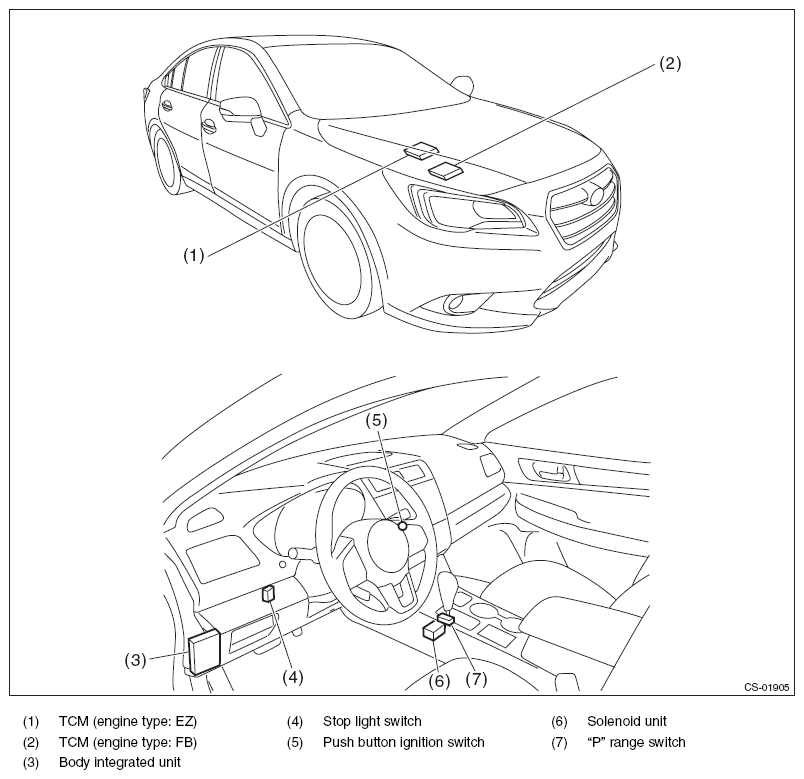

Fig 2: AT Shift Lock Control System Component Location - Model With Push Button Ignition Switch (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
