Model With Push Button Ignition Switch

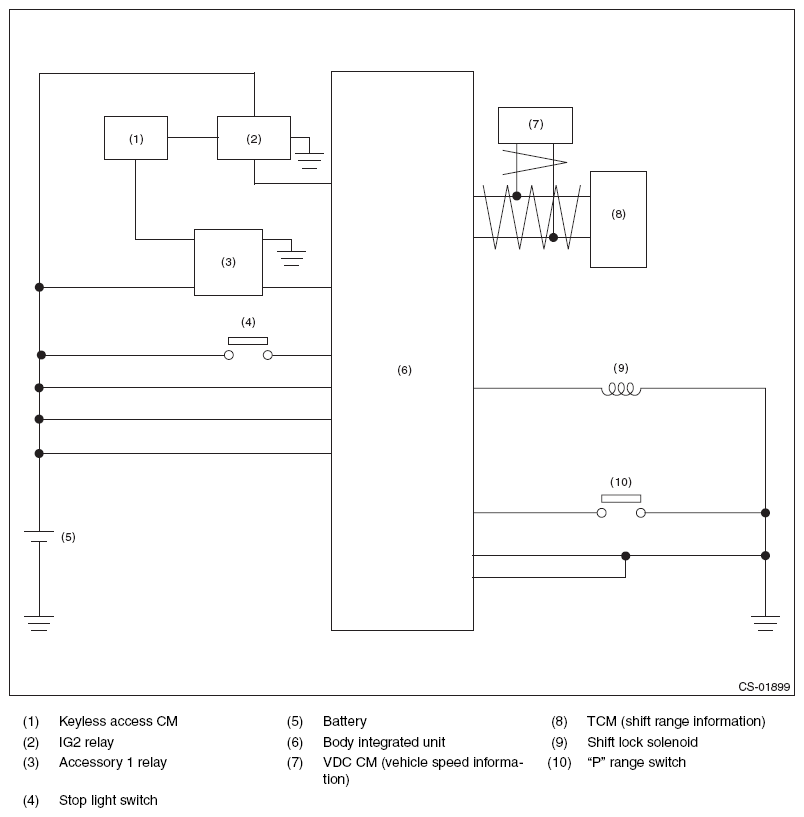

Fig 1: Model With Push Button Ignition Switch - Wiring Diagram
G10274672Courtesy of SUBARU OF AMERICA, INC.
