MT Gear Shift Cable: Removal

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Lift up the vehicle.
Remove the center exhaust pipe. <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the center exhaust cover.

Fig 1: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp cable and take out the MT gear shift cable from the clamp.

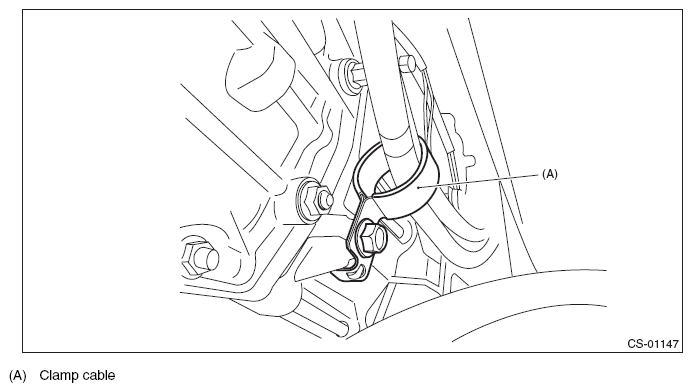

Fig 2: Identifying Clamp Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the dust cover. (OUTBACK model)

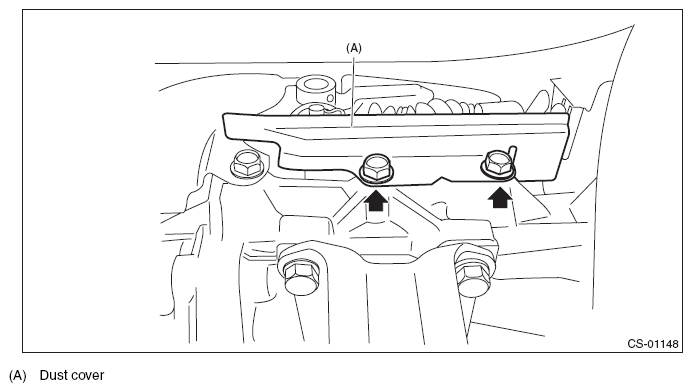

Fig 3: Locating Dust Cover Bolts (Outback Model)
Courtesy of SUBARU OF AMERICA, INC.
Apply a mark on the top end of the MT gear shift cable.
Remove the snap pin.

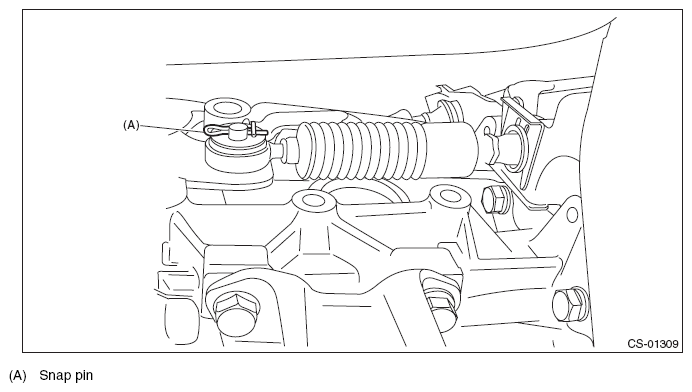

Fig 4: Identifying Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift bracket together with the MT gear shift cable.

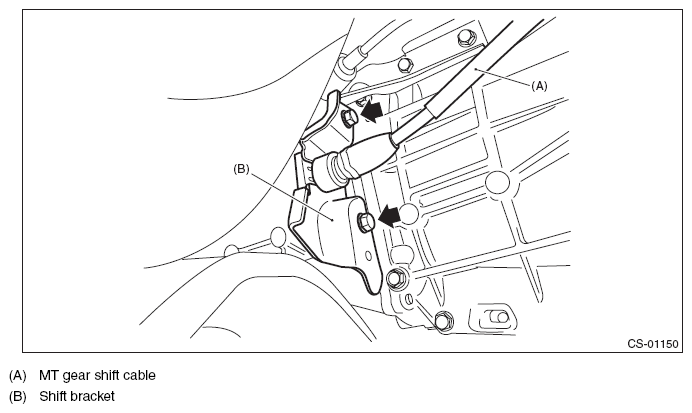

Fig 5: Locating Shift Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate cable assembly.

Fig 6: Locating Plate Cable Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring at the MT gear shift cable by expanding it and pulling down, and remove the MT gear shift cable from the gear shift lever assembly.
CAUTION: Be careful not to deform the cable inner.

Fig 7: Removing MT Gear Shift Cable Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp which holds the MT gear shift cable.

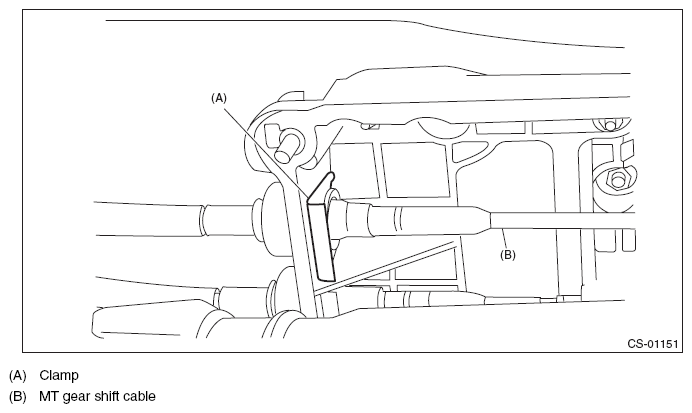

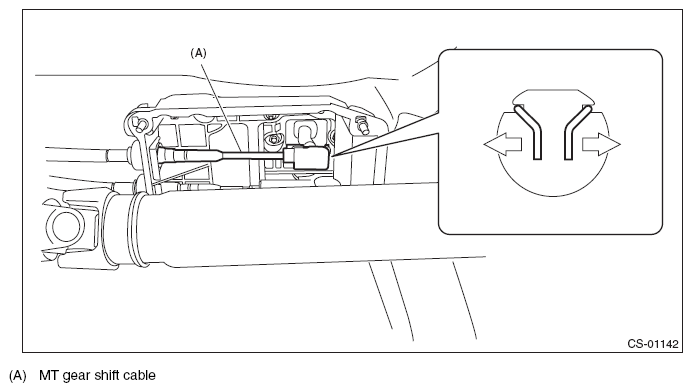

Fig 8: Identifying MT Gear Shift Cable And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear shift cable.
