MT Gear Shift Cable: Installation

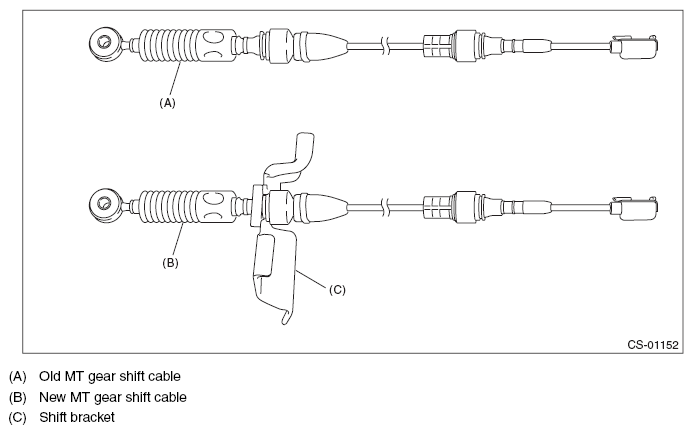

When replacing the new MT gear shift cable, secure it to shift bracket with the clamps, be careful not to mistake the installing direction.

Fig 1: Identifying MT Gear Shift Cable And Shift Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the shift bracket together with the MT gear shift cable.
CAUTION:
- Do not bend MT gear shift cable at a sharp angle.
- Do not twist the cable inner excessively.

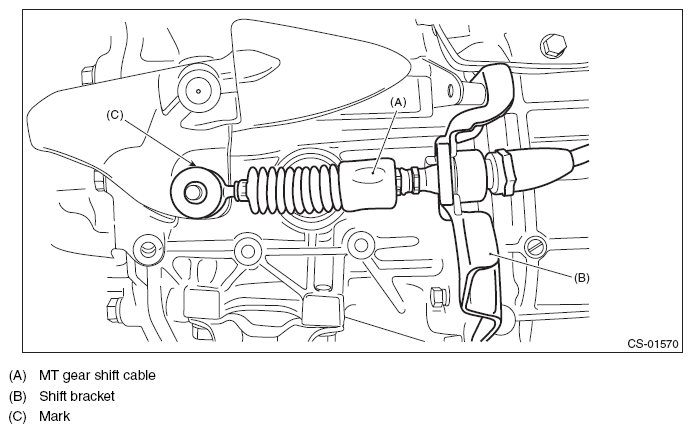

NOTE: When installing the MT gear shift cable, make sure that the mark or blue mark on the cable faces up.

Fig 2: Identifying MT Gear Shift Cable And Shift Bracket Mark
Courtesy of SUBARU OF AMERICA, INC.

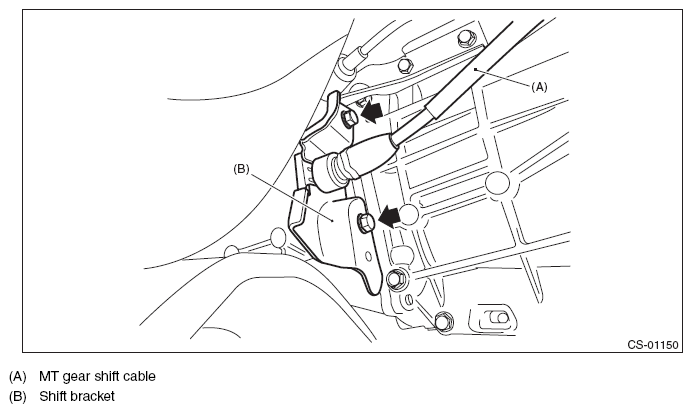

Tighten the shift bracket with specified torque.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 3: Locating Shift Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

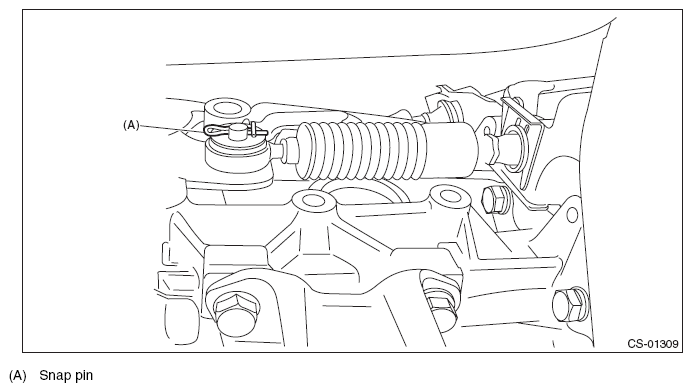

Install the snap pin.

Fig 4: Identifying Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the dust cover. (OUTBACK model)
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)

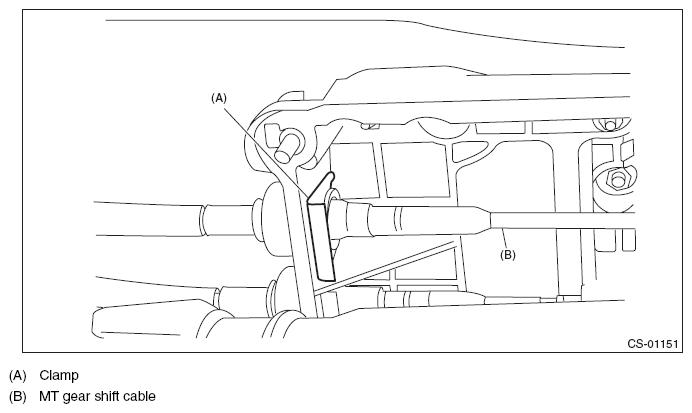

Insert the MT gear shift cable into the cover cable assembly, and secure it with the clamp.

Fig 5: Identifying MT Gear Shift Cable And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Connect the MT gear shift cable.
Install the plate cable assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

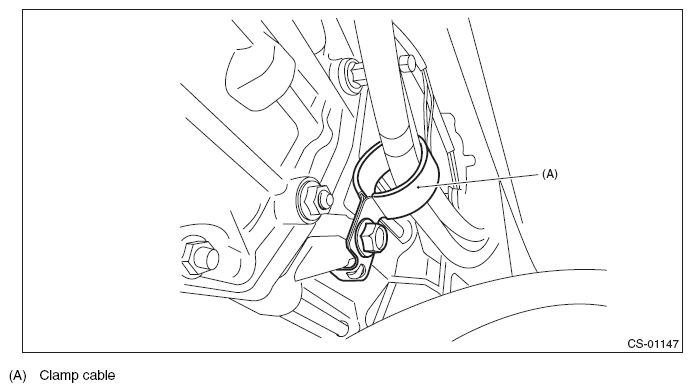

Insert the MT gear shift cable into clamp cable, and install to the transmission.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 6: Identifying Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the center exhaust pipe. <Ref. to INSTALLATION , Center Exhaust Pipe.>
Lower the vehicle.
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Make sure the gears can be shifted accurately into each gear.
