Fuel Pump Control Unit: Removal

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the trunk trim panel assembly - side on the RH side. (Sedan model) <Ref. to REMOVAL , Rear Quarter Trim.>
Remove the right side rear quarter trim. (OUTBACK model) <Ref. to REMOVAL , Rear Quarter Trim.>
Remove the fuel pump control unit.
- Sedan model

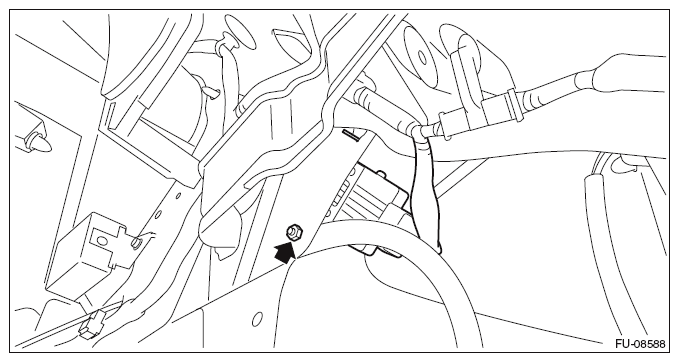

  Fig 1: Locating Fuel Pump Control Unit (Sedan Model)
  Courtesy of SUBARU OF AMERICA, INC.
- OUTBACK model

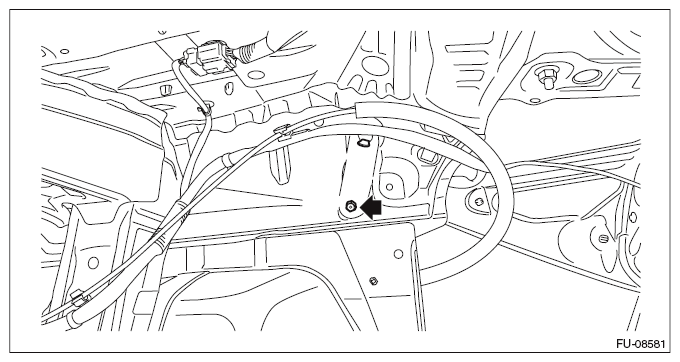

  Fig 2: Locating Fuel Pump Control Unit (OUTBACK Model)
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from fuel pump control unit.

Fig 3: Disconnecting Connector From Fuel Pump Control Unit
Courtesy of SUBARU OF AMERICA, INC.
