Ignition Control System: Wiring Diagram

Engine Electrical System ENGINE TYPE EZ (WITHOUT PUSH BUTTON START) <Ref. to ENGINE PERFORMANCE (Legacy), ENGINE PERFORMANCE (Outback), Engine Electrical System.>
Engine Electrical System ENGINE TYPE EZ (WITH PUSH BUTTON START) <Ref. to ENGINE PERFORMANCE (Legacy), ENGINE PERFORMANCE (Outback), Engine Electrical System.>

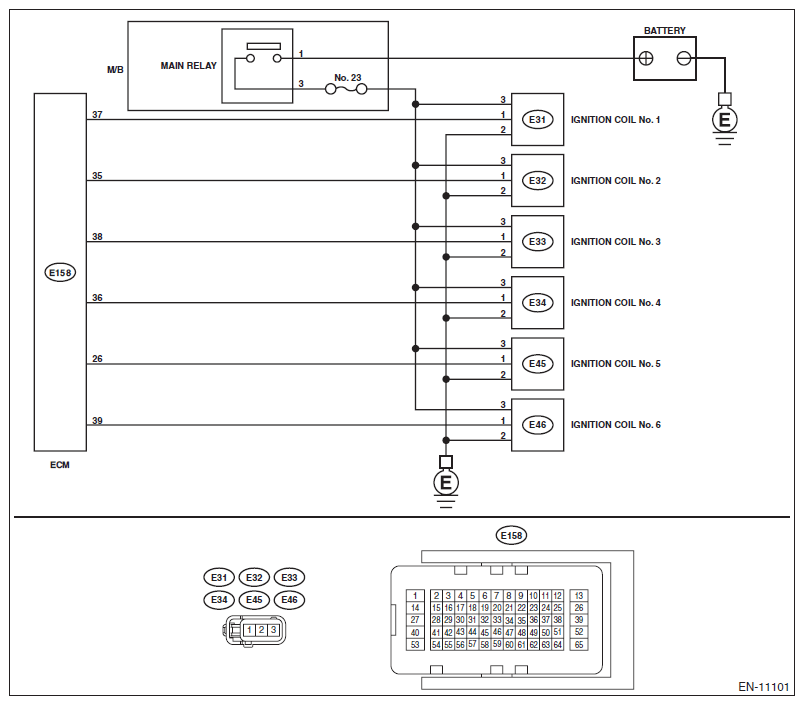

Fig 1: Engine Electrical System - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTICS PROCEDURE

Step	Check	Yes	No
1 CHECK SPARK PLUG CONDITION. Remove the spark plug. <Ref. to REMOVAL , Spark Plug.> Check the spark plug condition. <Ref. to INSPECTION , Spark Plug.>	Is the spark plug condition normal?	Go to step 2.	Replace the spark plug. <Ref. to SPARK PLUG .>
2 CHECK IGNITION SYSTEM FOR SPARKS. Connect the spark plug to ignition coil. Release the fuel pressure. <Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.> Contact the spark plug thread portion to engine. While opening the throttle valve fully, start the engine to check if spark occurs at each cylinder.	Does spark occur at each cylinder?	Check fuel pump system. <Ref. to FUEL PUMP CIRCUIT , Diagnostics for Engine Starting Failure.>	Go to step 3.
3 CHECK IGNITION COIL POWER SUPPLY CIRCUIT. Turn the ignition switch to OFF. Disconnect the connector from ignition coil. Turn the ignition switch to ON. Measure the voltage between ignition coil connector and engine ground. Connector & terminal (E31) No. 3 (+) - Engine ground (-): (E32) No. 3 (+) - Engine ground (-): (E33) No. 3 (+) - Engine ground (-): (E34) No. 3 (+) - Engine ground (-): (E45) No. 3 (+) - Engine ground (-): (E46) No. 3 (+) - Engine ground (-):	Is the voltage 10 V or more?	Go to step 4.	Repair the harness and connector. NOTE: In this case, repair the following item: Open or short to ground in harness of power supply circuit Blown out of fuse (M/B No. 14) Poor contact of coupling connector
4 CHECK HARNESS OF IGNITION COIL GROUND CIRCUIT. Turn the ignition switch to OFF. Measure the resistance of harness between ignition coil connector and engine ground. Connector & terminal (E31) No. 2 - Engine ground: (E32) No. 2 - Engine ground: (E33) No. 2 - Engine ground: (E34) No. 2 - Engine ground: (E45) No. 2 - Engine ground: (E46) No. 2 - Engine ground	Is the resistance less than 5 Ω?	Go to step 5.	Repair the open circuit in harness between ignition coil connector and engine grounding terminal.
5 CHECK HARNESS BETWEEN ECM AND IGNITION COIL CONNECTOR. Disconnect the connector from ECM. Measure the resistance of harness between ECM connector and ignition coil connector. Connector & terminal (B158) No. 37 - (E31) No. 1: (B158) No. 35 - (E32) No. 1: (B158) No. 38 - (E33) No. 1: (B158) No. 36 - (E34) No. 1: (B158) No. 26 - (E45) No. 1: (B158) No. 39 - (E46) No. 1:	Is the resistance less than 1 Ω?	Go to step 6.	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit of harness between ECM connector and the ignition coil connector Poor contact of coupling connector
6 CHECK HARNESS BETWEEN ECM AND IGNITION COIL CONNECTOR. Measure the resistance of harness between ECM connector and chassis ground. Connector & terminal: (B158) No. 37 - Chassis ground: (B158) No. 35 - Chassis ground: (B158) No. 38 - Chassis ground: (B158) No. 36 - Chassis ground: (B158) No. 26 - Chassis ground: (B158) No. 39 - Chassis ground:	Is the resistance 1 MΩ or more?	Go to step 7.	Repair the ground short circuit of harness between ECM connector and ignition coil connector.
7 CHECK FOR POOR CONTACT. Check for poor contact of ECM connector.	Is there poor contact of ECM connector?	Repair the poor contact of ECM connector.	Replace the ignition coil. <Ref. to IGNITION COIL .>
