Control Module

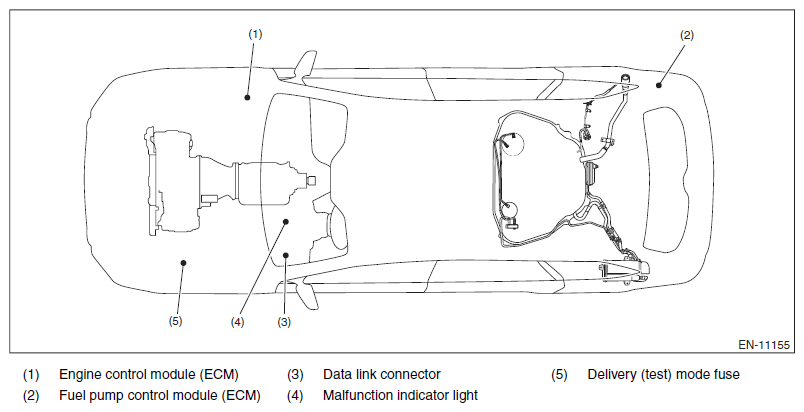

Fig 1: Control Module Component Location (1 Of 2)
G10264377Courtesy of SUBARU OF AMERICA, INC.

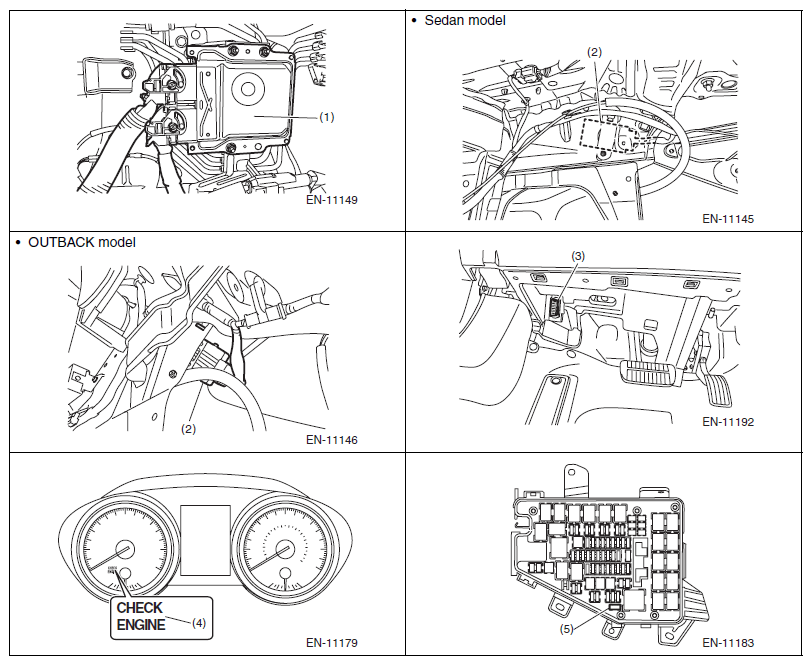

Fig 2: Control Module Component Location (2 Of 2)
G10264378Courtesy of SUBARU OF AMERICA, INC.
