Crankshaft Position Sensor (Method With Oscilloscope)

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  2. Prepare an oscilloscope.
  3. Remove the engine control module (ECM). <Ref. to REMOVAL , Engine Control Module (ECM).>
  4. Install the ST between the ECM and bulkhead harness and the engine harness. <Ref. to CAUTION , General Description.>

    ST 18460AA030 CHECK BOARD

  5. Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
  6. Connect the probe to ST.

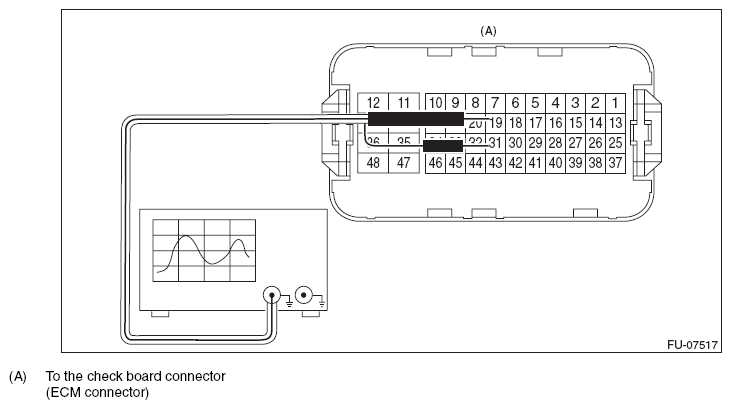

    Fig 1: Connecting Ground Terminal To Battery Sensor
    G10266209Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Probe
    19 +
    31 -
  7. Start the engine and let it idle.
  8. Check the pattern is the same as the waveform and voltage shown below.

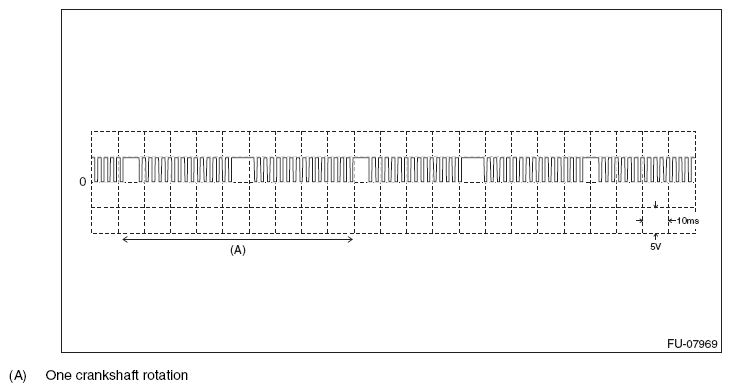

    Fig 2: Crankshaft Rotation Voltage Waveform
    G10266210Courtesy of SUBARU OF AMERICA, INC.
  9. After inspection, install the related parts in the reverse order of removal.
