Fuel Pipe Insulator No. 1

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  2. Remove the intake manifold. <Ref. to REMOVAL , Intake Manifold.>
  3. Remove the fuel pipe insulator No. 1.

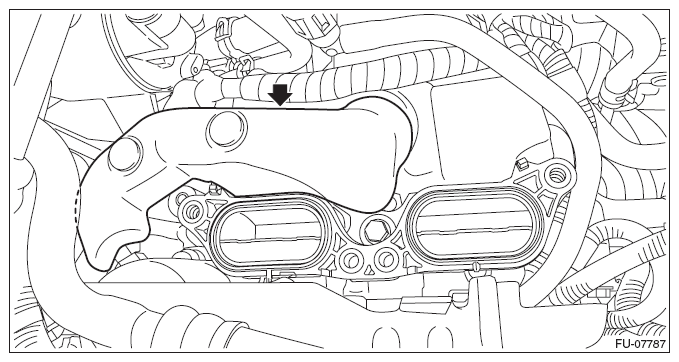

    Fig 1: Locating Fuel Pipe Insulator No. 1
    G09479649Courtesy of SUBARU OF AMERICA, INC.
