Throttle Body

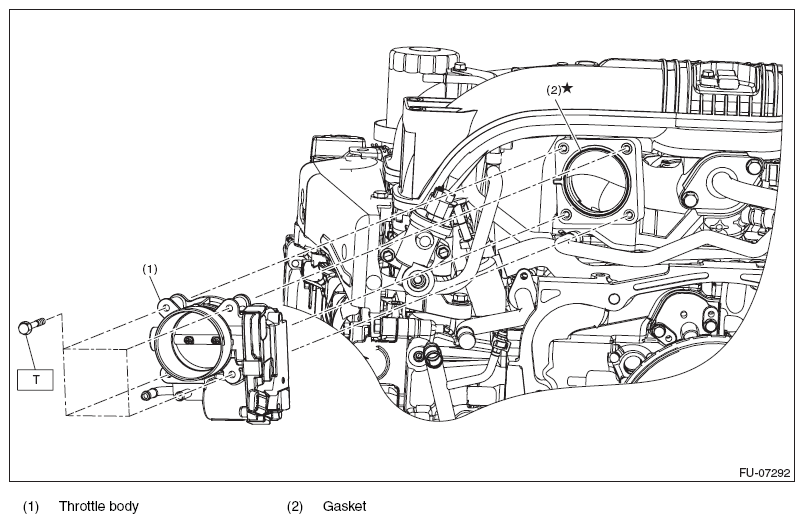

Fig 1: Identifying Throttle Body Related Components With Torque Specification
G10266059Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
