Front Strut: Assembly

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Before assembly, check each part. <Ref. to INSPECTION , Front Strut.>
Using a coil spring compressor, compress the coil spring.
NOTE: Make sure that the vertical install direction of the coil spring is as shown in the figure.

Fig 1: Identifying Coil Spring
Courtesy of SUBARU OF AMERICA, INC.
Set the coil spring correctly so that its end face seats well in the spring seat as shown in the figure.

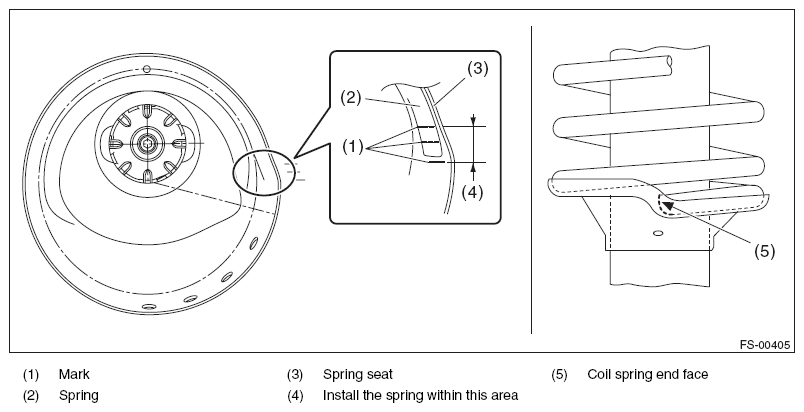

CAUTION: Install the coil spring so that the end of spring is between the marks on the spring seat.

Fig 2: Identifying Marks On Spring Seat
Courtesy of SUBARU OF AMERICA, INC.
Install the dust cover and the helper - front strut to the piston rod.
Pull the piston rod fully upward, and install the spring seat and the dust cover - front strut.

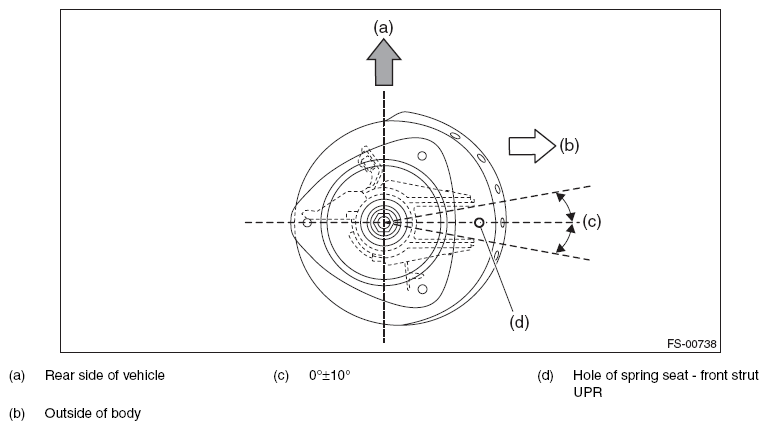

NOTE: Position the spring seat - front strut UPR as shown in the figure.

Fig 3: Positioning Spring Seat - Front Strut UPR
Courtesy of SUBARU OF AMERICA, INC.
Install the spacer - front strut and the strut mount - front to the piston rod, and temporarily tighten a new self-locking nut.
Using a hexagon wrench to prevent strut rod from turning, tighten the new self-locking nut with ST.
CAUTION: Make sure that the strut mount - front turns smoothly after tightening.

Preparation tool:

ST: STRUT MOUNT SOCKET (20399AG000)

Fig 4: Tightening Self-Locking Nut With ST
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

55 N.m (5.6 kgf-m, 40.6 ft-lb)
Loosen the coil spring compressor carefully.
