MT Gear Shift Cable: Installation

CAUTION:

Do not bend MT gear shift cable at a sharp angle.
When replacing the new MT gear shift cable, secure it to shift bracket with the clamps, be careful not to mistake the installing direction.

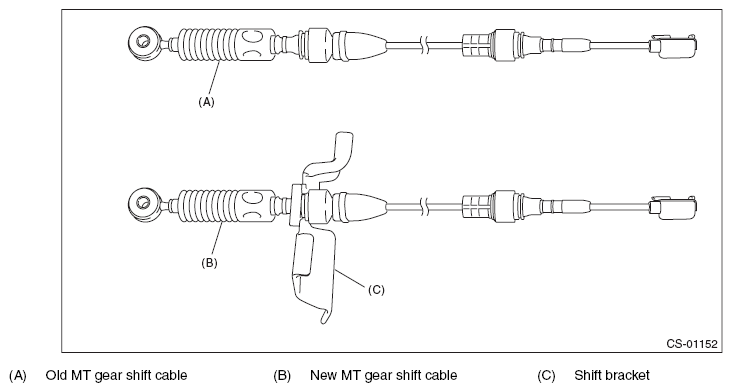

Fig 1: Identifying MT Gear Shift Cable And Shift Bracket

Courtesy of SUBARU OF AMERICA, INC.

Install the shift bracket together with the MT gear shift cable.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

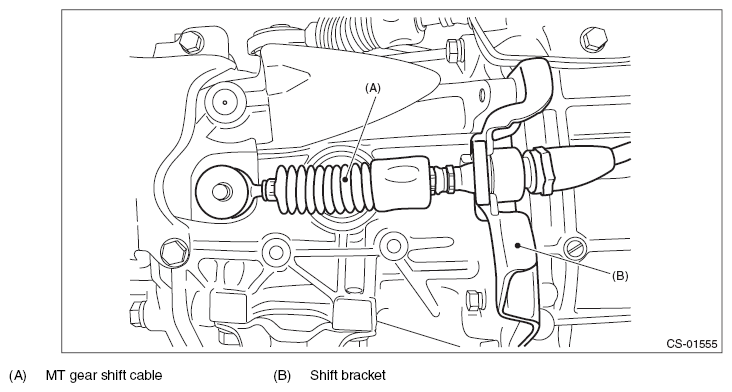

Fig 2: Identifying Shift Bracket And MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.

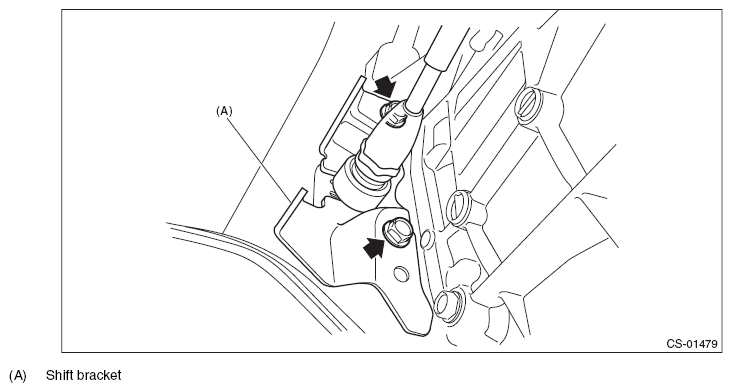

Fig 3: Locating Shift Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the snap pin and washer.

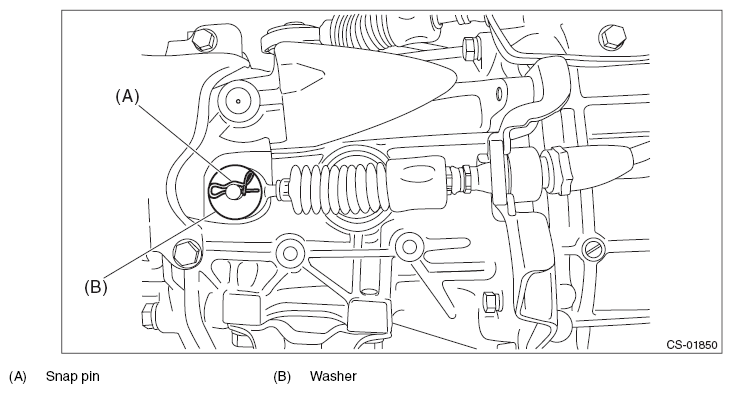

Fig 4: Identifying Snap Pin And Washer
Courtesy of SUBARU OF AMERICA, INC.
Install the dust cover.
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)
Insert the MT gear shift cable into cable cover assembly, and install the clamp.

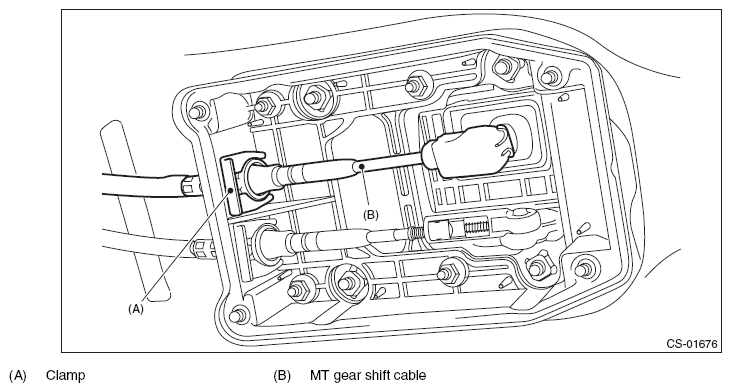

Fig 5: Identifying MT Gear Shift Cable And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Connect the MT gear shift cable.
Attach the cable cover plate.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Insert the MT gear shift cable into cable clamp, and install to the transmission.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

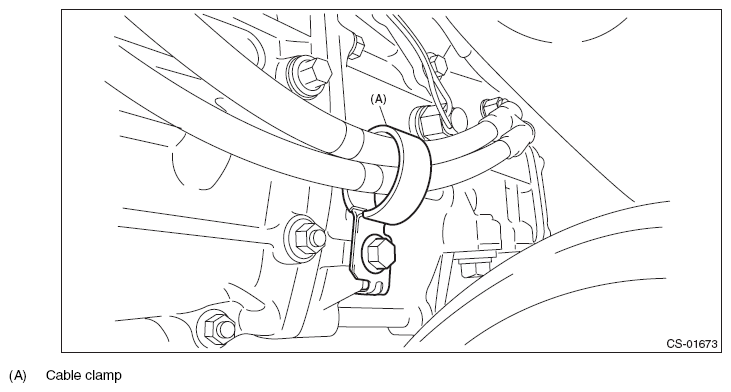

Fig 6: Identifying Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the center exhaust pipe (rear). <Ref. to INSTALLATION , Center Exhaust Pipe.>
Lower the vehicle.
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
Make sure the gears can be shifted accurately into each gear.
