MT Gear Shift Cable: Removal

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
Lift up the vehicle.
Remove the center exhaust pipe (rear). <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the center exhaust cover.

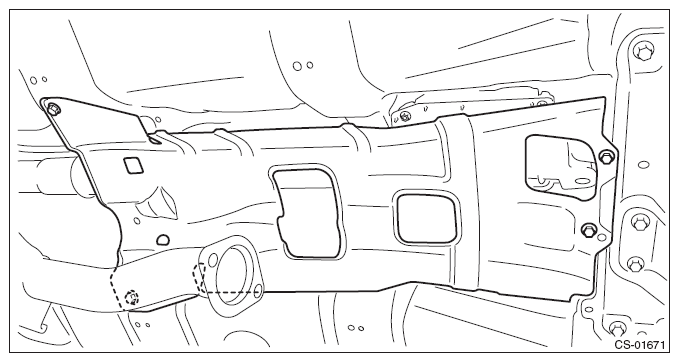

Fig 1: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable clamp.

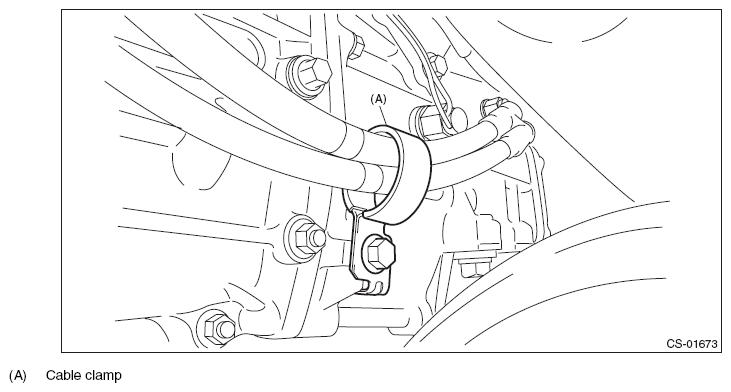

Fig 2: Identifying Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the dust cover.

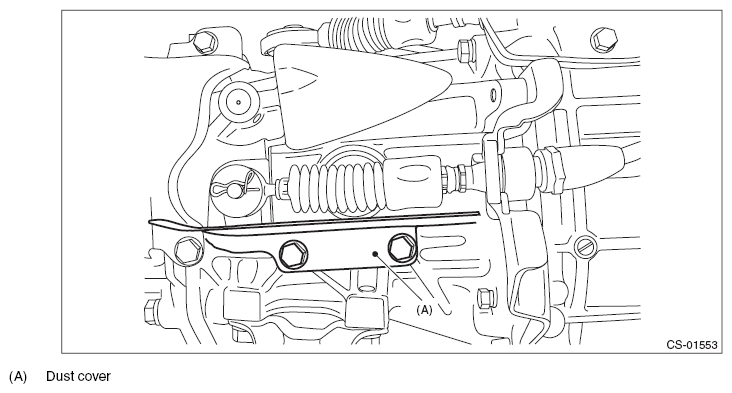

Fig 3: Identifying Dust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap pin and washer.

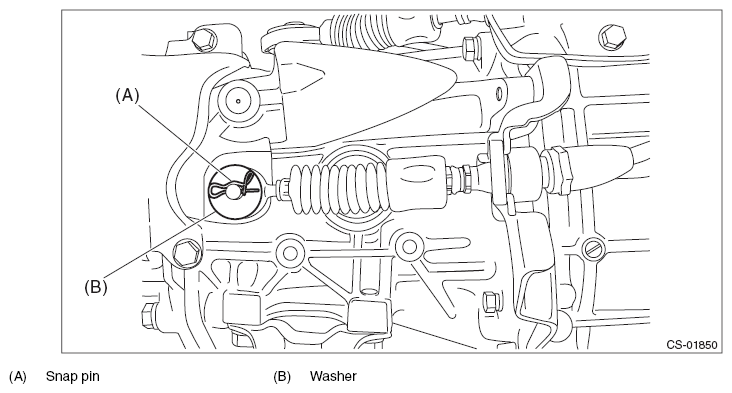

Fig 4: Identifying Snap Pin And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts holding the shift bracket.

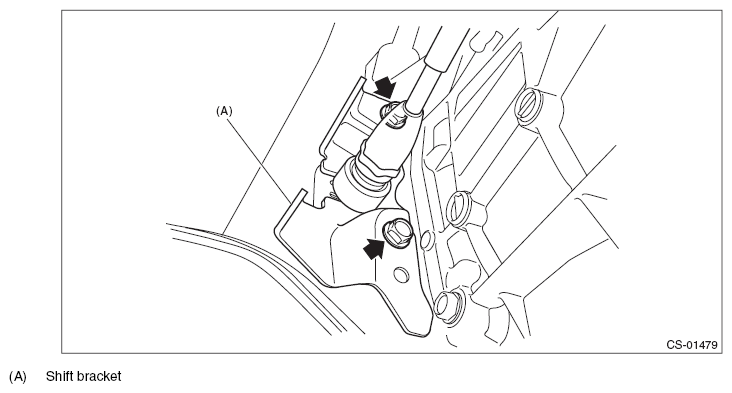

Fig 5: Locating Shift Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift bracket together with the MT gear shift cable.

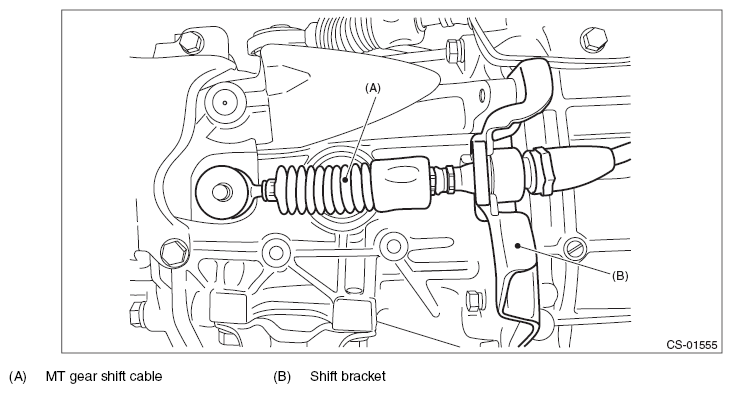

Fig 6: Identifying Shift Bracket And MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable cover plate.

Fig 7: Locating Cable Cover Plate Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the MT gear shift cable.
CAUTION: Be careful not to deform the cable inner.

NOTE: Pull out down the MT gear shift cable to spread the spring.

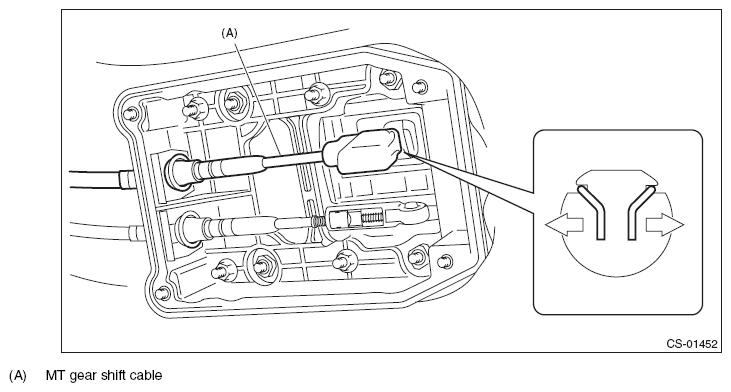

Fig 8: Identifying MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp.

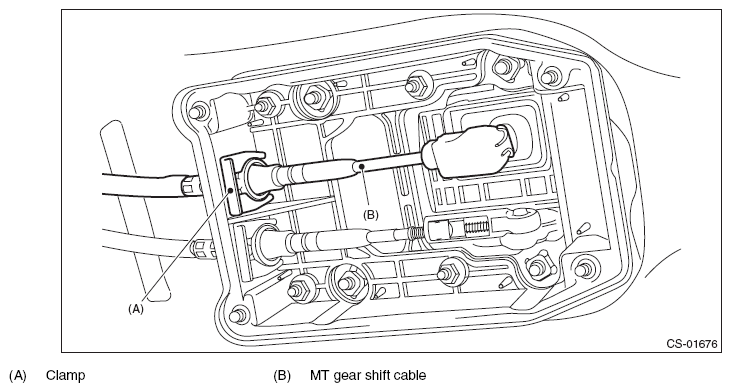

Fig 9: Identifying Clamp
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear shift cable.
CAUTION:
- Do not bend MT gear shift cable at a sharp angle.
- Do not twist the cable inner excessively.
Fig 10: Identifying MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
