Except For STI Model

Install the gear shift lever assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 1: Locating Gear Shift Lever Assembly Screws
Courtesy of SUBARU OF AMERICA, INC.
Install the harness clamp.
Lift up the vehicle.
Install the cable cover assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Connect the MT gear shift cable and MT gear select cable.
CAUTION: Be careful not to deform the cable inner.

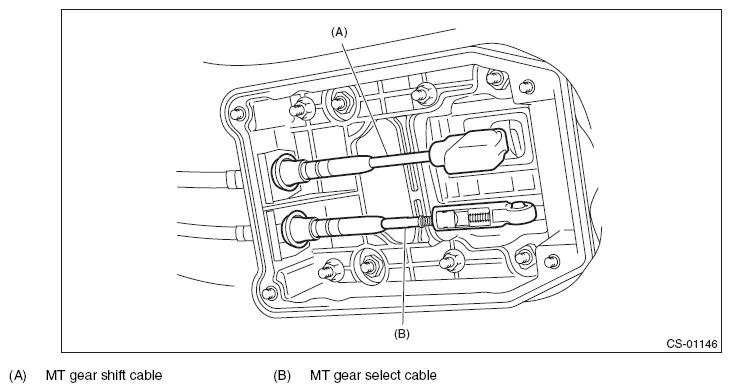

Fig 2: Identifying MT Gear Shift Cable And MT Gear Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Attach the cable cover plate.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the center exhaust pipe (rear). <Ref. to INSTALLATION , Center Exhaust Pipe.>
Lower the vehicle.
Adjust the detent of the MT gear shift lever. <Ref. to ADJUSTMENT , MT Gear Shift Lever.>
Install the panel center LWR LH and RH. <Ref. to INSTALLATION , Console Box.>
Install the cover - shift lever, and install the gear shift knob. <Ref. to INSTALLATION , Console Box.>
Install the console box assembly. <Ref. to INSTALLATION , Console Box.>
Make sure the gears can be shifted accurately into each gear. Adjust the MT gear select lever, if the gears cannot be shifted correctly. <Ref. to ADJUSTMENT , MT Gear Select Cable.>
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
