Except For STI Model

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  2. Lift up the vehicle.
  3. Remove the center exhaust pipe (rear). <Ref. to REMOVAL , Center Exhaust Pipe.>
  4. Remove the center exhaust cover.
    Fig 1: Identifying Center Exhaust Cover
    G09481210Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the cable cover plate.
    Fig 2: Locating Cable Cover Plate Bolts
    G10267862Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the MT gear shift cable and MT gear select cable.
    CAUTION: Be careful not to deform the cable inner.
    1. Pull out down the MT gear shift cable to spread the spring.
    2. Push the MT gear select cable in the direction of arrow, and remove it.

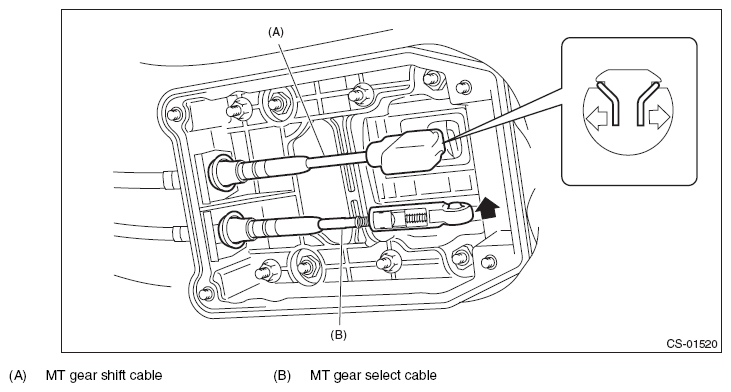

      Fig 3: Pushing Gear Select Cable
      G10267863Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the cable cover assembly.
    Fig 4: Locating Cable Cover Assembly Bolts
    G06651771Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Remove the console box assembly. <Ref. to REMOVAL , Console Box.>
  10. Remove the gear shift knob and remove the cover - shift lever. <Ref. to REMOVAL , Console Box.>
  11. Remove the panel center LWR LH and RH. <Ref. to REMOVAL , Console Box.>
  12. Remove the harness clamp.
  13. Remove the gear shift lever assembly.
    NOTE: The MT gear shift lever cannot be disassembled.
    Fig 5: Locating MT Gear Shift Lever Mounting Bolts
    G09481214Courtesy of SUBARU OF AMERICA, INC.
