STI Model

Disconnect the ground cable from battery.
Remove the gear shift knob by turning it counterclockwise.
Remove the console box assembly. <Ref. to REMOVAL , Console Box.>
Remove the cover - shift lever. <Ref. to REMOVAL , Console Box.>
Remove the panel center LWR LH and RH. <Ref. to REMOVAL , Console Box.>
Remove the clamp.

Fig 1: Identifying MT Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and insulator assembly.

Fig 2: Identifying Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clamp.

Fig 3: Identifying Harness Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate COMPL.

Fig 4: Identifying Plate Compl
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the center exhaust pipe (rear). <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the center exhaust cover.

Fig 5: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the crossmember. <Ref. to REMOVAL , Transmission Mounting System.>
Remove the snap pin and washer, and remove the reverse check cable.

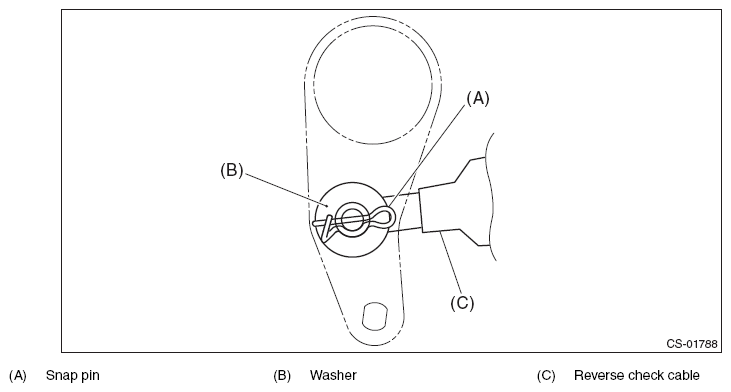

Fig 6: Identifying Snap Pin, Washer And Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.
Move the transmission to the right side, and remove the joint COMPL, stay bolts and reverse check cable.
NOTE: If the transmission is not moved aside, the joint COMPL and stay bolts may contact the body and cause damage.

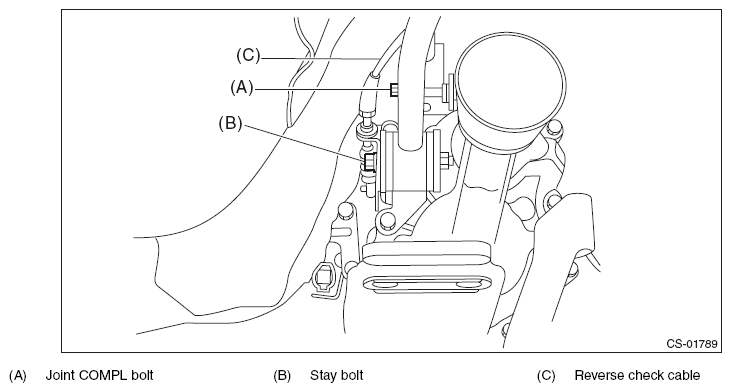

Fig 7: Identifying Joint Compl Bolt, Stay Bolt, Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber.

Fig 8: Identifying Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Remove the gear shift lever.
