M/T Clutch System: Flywheel: Removal

  1. Remove the transmission assembly. <Ref. to REMOVAL , Manual Transmission Assembly.> <Ref. to REMOVAL , Manual Transmission Assembly.>
  2. Remove the clutch cover and clutch disc. <Ref. to REMOVAL , Clutch Disc and Cover.>

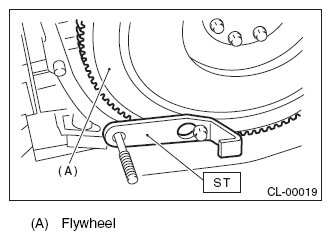

  3. Using the ST, remove the flywheel.

    ST 498497100 CRANKSHAFT STOPPER

    Fig 1: Removing Clutch Cover And Clutch Disc
    G10269311Courtesy of SUBARU OF AMERICA, INC.
