MT Gear Shift Lever: Adjustment

NOTE: Adjust the detent when the following items have been replaced. (Except for STI model)

Remove the console box assembly. <Ref. to REMOVAL , Console Box.>
Remove the gear shift knob and remove the cover - shift lever. <Ref. to REMOVAL , Console Box.>
Remove the panel center LWR LH and RH. <Ref. to REMOVAL , Console Box.>
Install the gear shift knob.
Place the shift lever in neutral position.
Loosen the detent bolt.

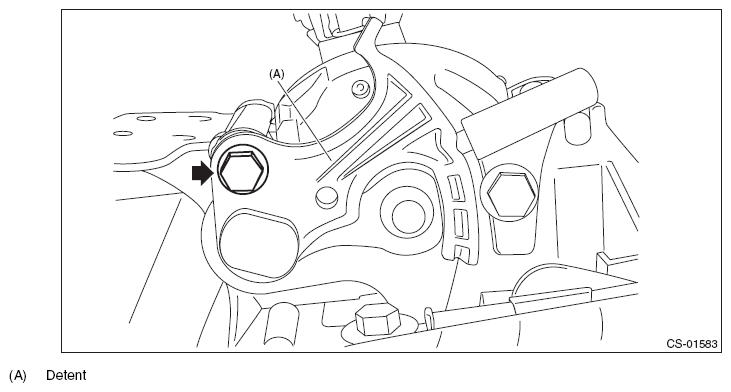

Fig 1: Locating Detent Bolt
Courtesy of SUBARU OF AMERICA, INC.
Move the detent up and down and align the detent pin to the groove. Make sure that the detent pin is fitted in the groove and a clicking sound is heard.

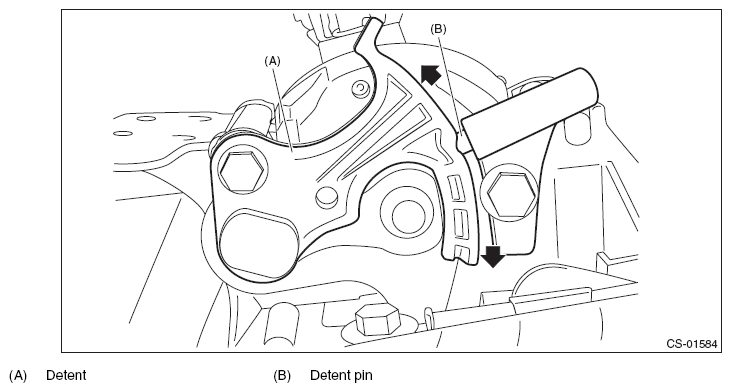

Fig 2: Identifying Detent Pin
Courtesy of SUBARU OF AMERICA, INC.
Pull up the slider, select the shift lever to the reverse direction, and make sure it returns to the neutral position after releasing hands.
Tighten the detent bolt.
NOTE: When tightening the bolt, hold the shift lever by hand so that the detent pin does not come out from the groove.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 3: Identifying Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Move the shift lever to the neutral position, and check that the play in the select direction above the shift knob is within the reference standard. If it is not within the reference standard, repeat adjustment procedures from the beginning.
Play in neutral position:

Reference standard

1.5 mm (0.059 in) or less

Fig 4: Checking Shift Lever Play At Neutral Position
