Select Cable: Adjustment

Shift the select lever to "N" range.
Lift up the vehicle.
Remove the center exhaust pipe (rear). <Ref. to REMOVAL , Center Exhaust Pipe.>
Remove the center exhaust cover.

Fig 1: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the adjusting nuts on both sides.

Fig 2: Identifying Adjusting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Turn adjusting nut B until it lightly touches the connector.

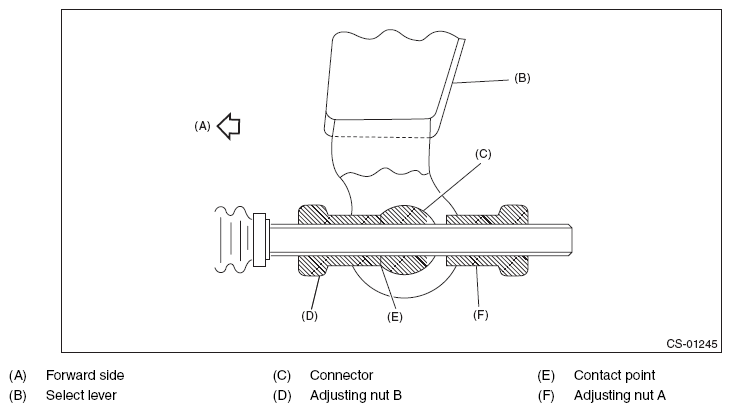

Fig 3: Turning Adjusting Nut
Courtesy of SUBARU OF AMERICA, INC.
Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.
Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

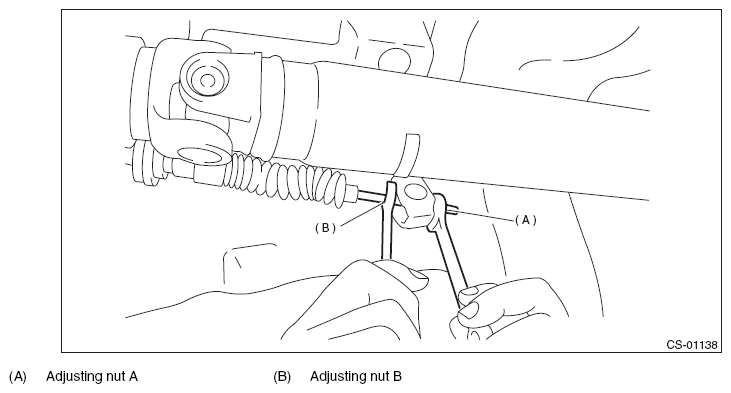

Fig 4: Tightening Adjusting Nut A
Courtesy of SUBARU OF AMERICA, INC.
After the completion of adjustment, confirm that the select lever operates normally at all ranges.
Installing procedure hereafter is in the reverse order of removal.
