Fuel Sub Level Sensor: Removal

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION:

Be careful not to spill fuel.
Catch the fuel from the tubes using a container or cloth.
If the fuel gauge indicates that two thirds or more of the fuel is remaining, be sure to drain fuel before starting work to avoid the fuel to spill.

Release the fuel pressure. <Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.>
Drain fuel. <Ref. to DRAINING FUEL (WITH SUBARU SELECT MONITOR) , PROCEDURE, Fuel.>
Disconnect the ground cable from battery.
Remove the rear seat cushion. <Ref. to REMOVAL , Rear Seat.>
Remove the service hole cover.

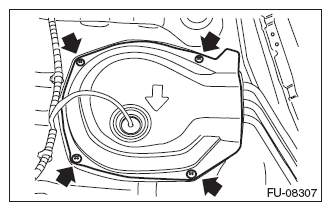

Fig 1: Locating Service Hole Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel sub level sensor.

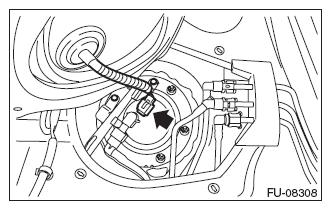

Fig 2: Locating Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the quick connectors of fuel delivery tube (A), fuel return tube (B), and jet pump tube (C). <Ref. to REMOVAL , Fuel Delivery, Return and Evaporation Lines.>
Remove the rubber cap (D) from the nut.

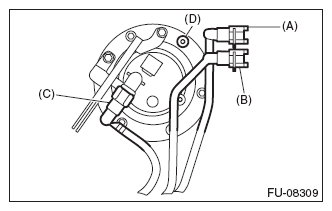

Fig 3: Identifying Fuel Delivery, Fuel Return And Jet Pump Tubes
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and nuts which hold fuel sub level sensor protector and fuel sub level sensor upper plate to the fuel tank.

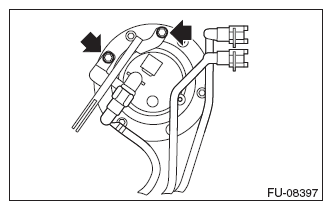

Fig 4: Locating Fuel Sub Level Sensor Protector Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Locating Fuel Sub Level Sensor Upper Plate Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel sub level sensor from the fuel tank.
