Fuel Tank: Installation

Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
WARNING: A helper is required to perform this work.

Fig 1: Locating Fuel Tank Band Bolts
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts of the fuel tank band in the order shown in the figure.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 2: Fuel Tank Band Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover and stopper.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 3: Locating Heat Shield Cover And Stopper Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel tank protector. <Ref. to INSTALLATION , Fuel Tank Protector.>
Connect the vent tube to the vent hose.

Fig 4: Locating Vent Hose Tube
Courtesy of SUBARU OF AMERICA, INC.

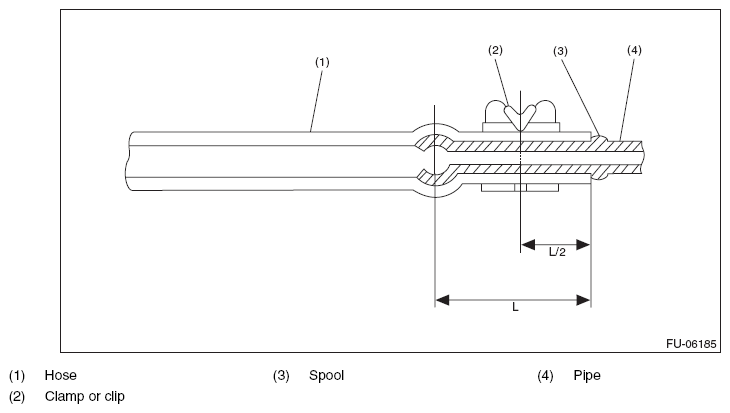

Securely insert the fuel filler hose (A) and evaporation hose (B) until the hose end contacts the spool, then attach the clamp or clip as shown in the figure.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 5: Identifying Fuel Filler And Evaporation Hoses
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Fuel Injection System Components
Courtesy of SUBARU OF AMERICA, INC.
Install the rear differential. <Ref. to INSTALLATION , Rear Differential (T-type).>
Install the rear exhaust pipe. <Ref. to INSTALLATION , Rear Exhaust Pipe.>

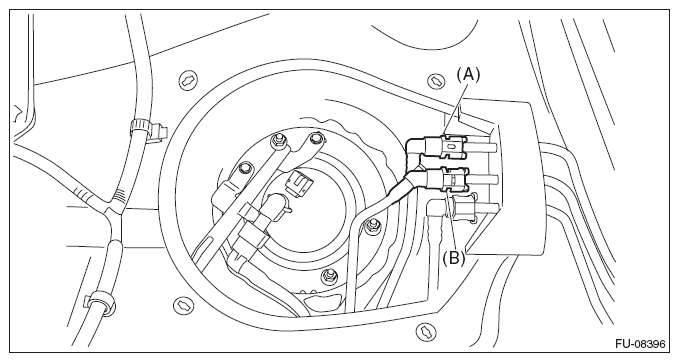

Connect the quick connector of fuel delivery tube (A) and fuel return tube (B). <Ref. to INSTALLATION , Fuel Delivery, Return and Evaporation Lines.>
NOTE: When connecting, be careful not to reverse the delivery side and return side.

Fig 7: Identifying Fuel Delivery And Return Tubes
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the fuel sub level sensor.

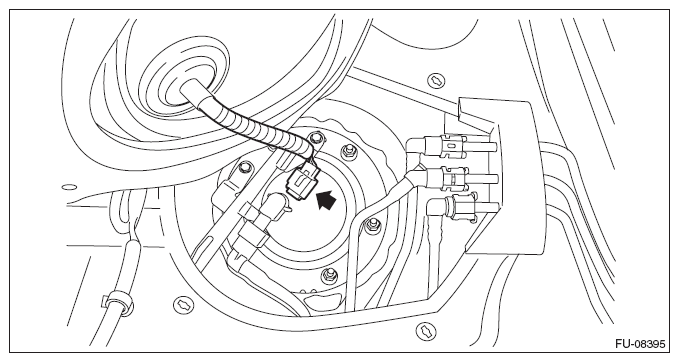

Fig 8: Locating Fuel Sub Level Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel sub level sensor.

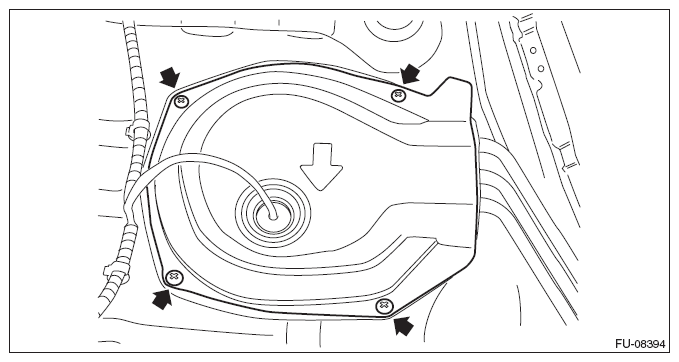

Fig 9: Locating Fuel Sub Level Sensor Service Hole Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the fuel pump.

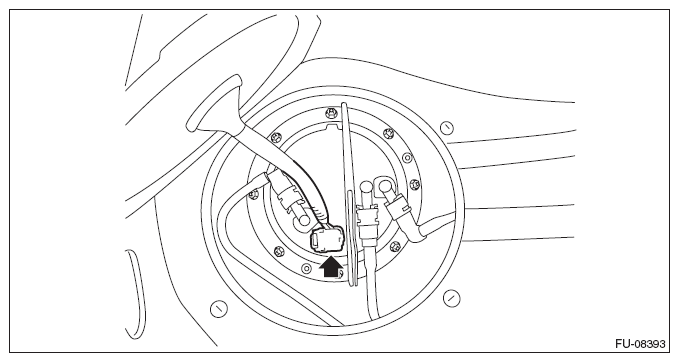

Fig 10: Locating Fuel Pump Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel pump.

Fig 11: Locating Fuel Pump Service Hole Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear seat cushion. <Ref. to INSTALLATION , Rear Seat.>
Connect the battery ground terminal.
