Fuel Tank

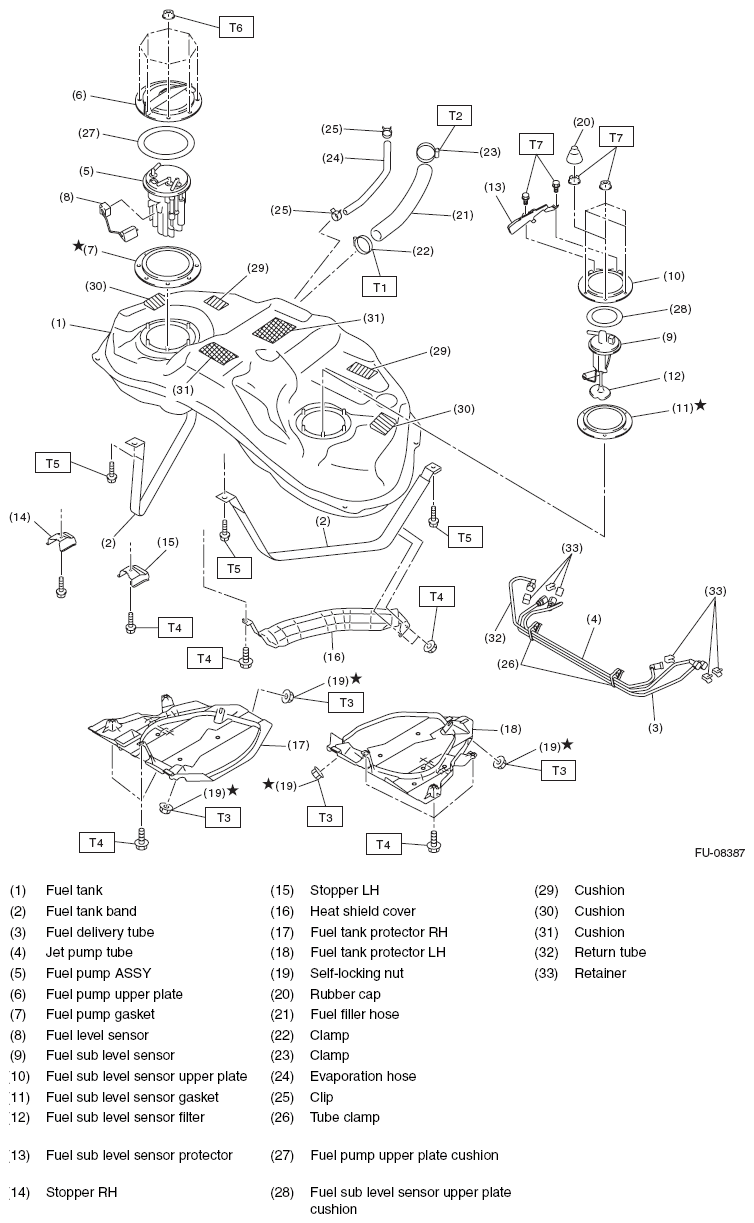

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 2.5 (0.3, 1.8)

T3: 9 (0.9, 6.6)

T4: 18 (1.8, 13.3)

T5: <Ref. to  INSTALLATION  , Fuel Tank.>

T6: <Ref. to  INSTALLATION  , Fuel Pump.>

T7: <Ref. to  INSTALLATION  , Fuel Sub Level Sensor.>
