Knock Sensor: Installation

Install the knock sensor to the cylinder block.
NOTE: The portion of the knock sensor cord that is pulled out must be positioned at a 60° angle relative to the engine rear.

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

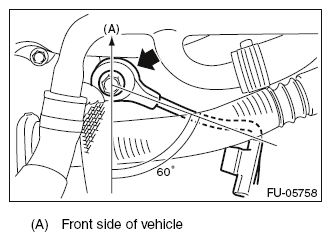

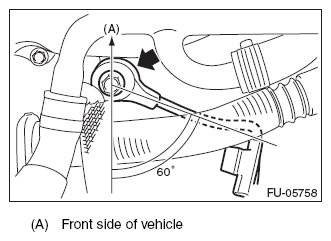

Fig 1: Locating Cylinder Block Knock Sensor (Vehicle Front Side)
Courtesy of SUBARU OF AMERICA, INC.
Install the secondary air combination valve RH. <Ref. to SECONDARY AIR COMBINATION VALVE RH , INSTALLATION, Secondary Air Combination Valve.>
Install the intake manifold. <Ref. to INSTALLATION , Intake Manifold.>
Install the intercooler. <Ref. to INSTALLATION , Intercooler.>
Connect the battery ground terminal.
